Access Valve, 5/8" ODS 90° Elbow Copper

A31160 MFG #: A31160
Out of Stock
  • Availability: Available for Delivery
  • Category: Refrigeration Fitting
  • Warehouse Availability: AVON, CRNE, MALD, PLME, SALE, WESE
  • Connection Size: 5/8"
  • Type: Access Valve 90 Degrees
  • Refresh Carrier Images: Done
  • Sx.e Stocking Unit: Each
  • Sx.e Vendor: J/B INDUSTRIES INC

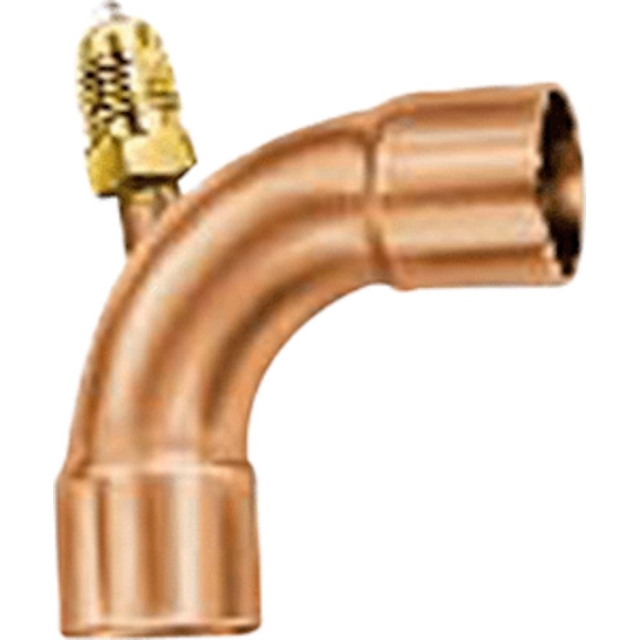

JB Industries 5/8" x 5/8", ODS x ODS, Copper, Straight, 90D Refrigerant Access Valve Elbow

JB machines all of the access valves at the factory in Aurora, Illinois using the highest level of brass consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content, resulting in higher failure rates. JB machines all of our valves to the strict guidelines of the ARI to ensure proper sealing of the valve and core surfaces. Our access fittings have generous counter bores to allow for the removal of the core if the flare becomes damaged. All tees and crosses are tapped to receive an access core in all 1/4" SAE flare ends. All pipe connections have internal braze cups for dip tube applications. All valves are equipped with cap and one valve core (braze type, loosely assembled). Temperature range -40 degrees to +250 degrees Fahrenheit (-40 to 121.1 degrees Celsius). Valve core is stainless steel and brass for use with all refrigerants including R-410A. Resistant to oils, alkalites and diluted mineral acids.

Features & Benefits

  • Made in USA

Specifications

  • Type: Straight
  • Angle: 90 Degree
  • Size A: 1-1/8 Inch
  • Size B: 1-1/8 Inch
  • End Connection: ODS x ODS
  • Material: Copper
  • Temperature Rating: -40 to 250 Deg F
  • Application: Refrigerant Access Valve
  • Includes Cap and Valve Core
