Factory Authorized Part

KT-43-VCP100, 30" ELEMENT

SKUKT-43-VCP100
Factory Authorized Part

KT-43-VCP100, 30" ELEMENT

SKUKT-43-VCP100

    Description

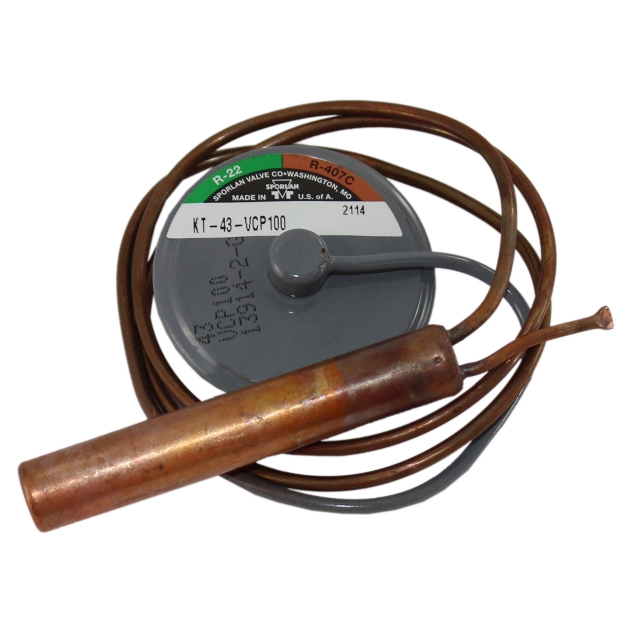

    Parker Hannifin Corp. (Sporlan) 43 Element, Green, R22/R422D/R407A, Charge CP, 30" Capillary Tube, Element Kit for BBI Small/(E)Q/SQ/(E)BQ/SBQ/(E)F/(E)BF/SBF/ER Small/RC Thermostatic Expansion Valve

    Features & Benefits

    • Take-Apart Construction for Easy Field Service
    • External Superheat Adjustment
    • Bi-Directional Capability
    • Stainless Steel Power Assembly

    Specifications

    • Type: Take-Apart, Bi-Directional, Adjustable Superheat, Small Capacity
    • Pressure Rating: 450 PSIG
    • Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
    • Exclusions: Bleed Hole, Flange
    • Application: Refrigerant, Air Conditioner and Heat Pump
    • Capillary Tube Length 5 Foot; Refrigerant Type R-22; Capacity 5 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting; Bolt Torque Rating 300 Inch-Pound

    Specifications

    • BrandFactory Authorized Part
    • RefrigerantR22

    Equipment Parts List

    There is no data available for this product
