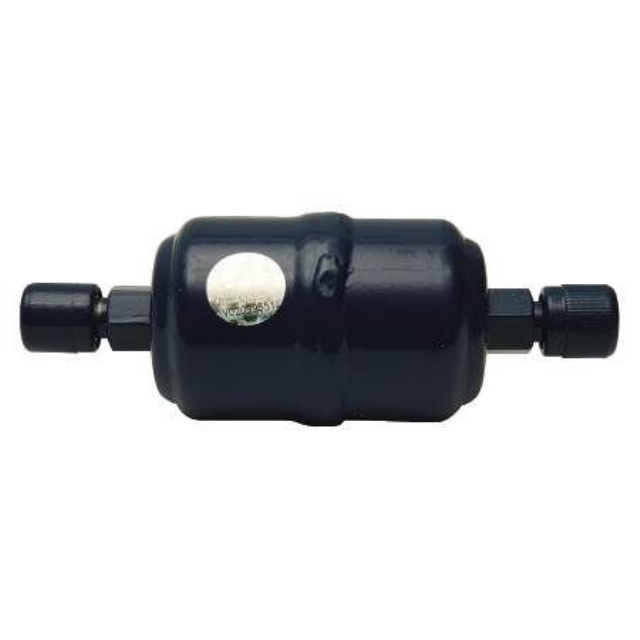

1/4" Sweat (ODF) Liquid Line Filter Drier ,8 CU IN
1/4" Sweat (ODF) Liquid Line Filter Drier ,8 CU IN
Description
Emerson Electric Co. (White-Rodgers) 2.64" x 4.99", 1/4" ODF Soldered x 1/4" ODF Soldered, 8 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- High Moisture and Acid Removal Capacity
- Copeland™ Products Approved for POE Oils
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 2.64 Inch Diameter x 6.19 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Corrosion Resistant Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 8 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 1/2 Inch SAE Flare x 1/2 Inch SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant8
- Line TypeLiquid
- Nominal Connection Size1/4" in
- Cutout Length4.29 in
- Filter Drier Overall Length4.99 in
- Height3.85" in
- Lay In Length3.85 in
- Shipping Height2.75 in
- Shipping Length2.75 in
- Shipping Weight1.1 lb
- Shipping Width6.75 in
- Solder Sprocket Depth0.35 in
- Weight1.25 lb
