5/8" Sweat (ODF) Liquid Line Filter Drier ,16 CU IN
5/8" Sweat (ODF) Liquid Line Filter Drier ,16 CU IN
Description

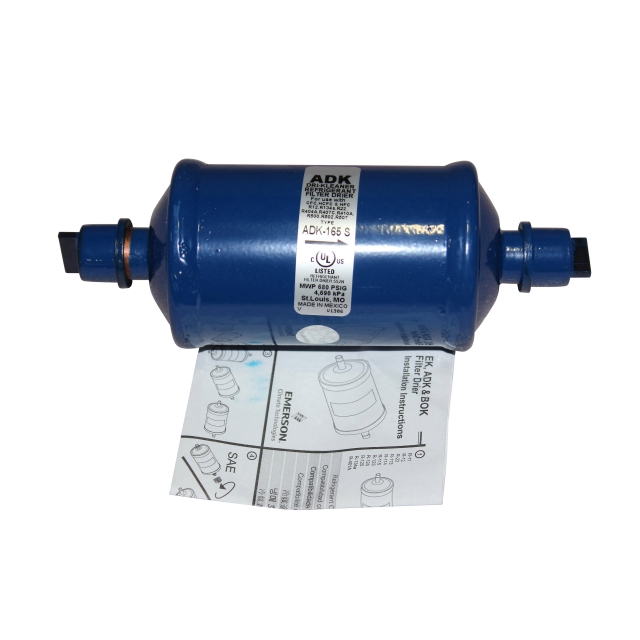

Emerson Electric Co. (White-Rodgers) 2.64" x 6.55", 5/8" ODF Soldered x 5/8" ODF Soldered, 16 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- High Moisture and Acid Removal Capacity
- Copeland™ Products Approved for POE Oils
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 3.14 Inch Diameter x 9.66 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Corrosion Resistant Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 30 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 3/8 Inch SAE Flare x 3/8 Inch SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant16
- Line TypeLiquid
- Nominal Connection Size5/8" in
- ApplicationLiquid Line
- Cutout Length5.09 in
- Filter Drier Overall Length6.55 in
- Height2.64" in
- Lay In Length4.78 in
- Length6.55 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height2.8 in
- Shipping Length8.5 in
- Shipping Point37406
- Shipping Weight1.15 lb
- Shipping Width2.8 in
- Solder Sprocket Depth0.73 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight1.53 lb
