5/8" Flare (SAE) Liquid Line Filter Drier ,30 CU IN
5/8" Flare (SAE) Liquid Line Filter Drier ,30 CU IN
Description

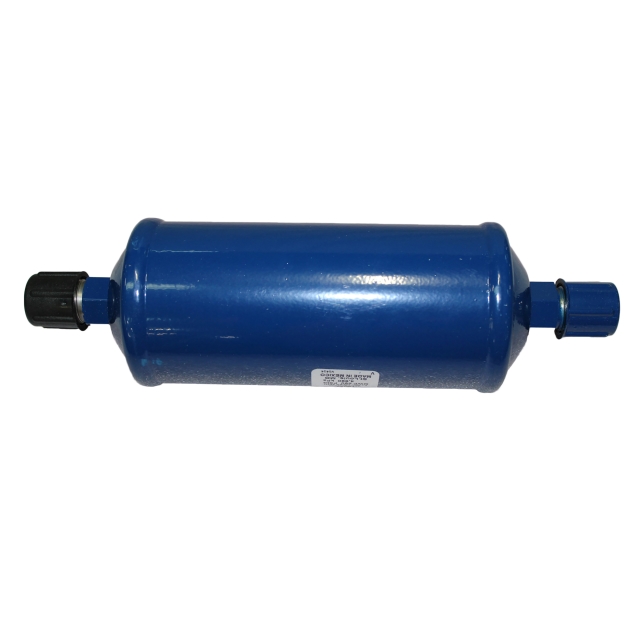

Emerson Electric Co. (White-Rodgers) 3.14" x 10.34", 5/8" SAE Flare x 5/8" SAE Flare, 30 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- High Moisture and Acid Removal Capacity
- Copeland™ Products Approved for POE Oils
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 3.14 Inch Diameter x 9.9 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Corrosion Resistant Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 30 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 7/8 Inch ODF Soldered x 7/8 Inch ODF Soldered; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeFlare (SAE)
- Core Material & FinishSolid Core
- Effective Volume Desiccant30
- Line TypeLiquid
- Nominal Connection Size5/8" in
- RefrigerantCFC, HCFC, HFC
- ApplicationLiquid Line
- Diameter3.14 in
- Filter Drier Overall Length10.34 in
- Height3.14" in
- Lay In Length7.54 in
- Length10.34 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height3.3858 in
- Shipping Length11.3386 in
- Shipping Point37406
- Shipping Weight2.95 lb
- Shipping Width3.3858 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight3.11 lb
- Width7.54 in
