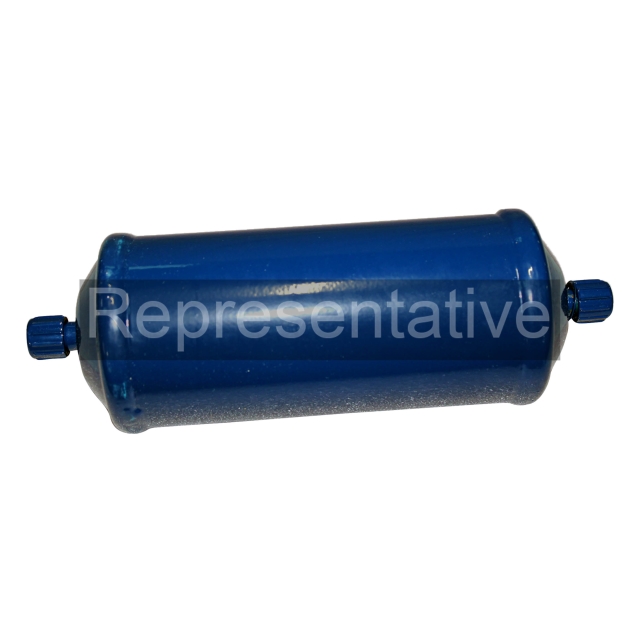

7/8" Sweat (ODF) Liquid Line Filter Drier ,30 CU IN
7/8" Sweat (ODF) Liquid Line Filter Drier ,30 CU IN
Description
Emerson Electric Co. (White-Rodgers) 3.14" x 9.9", 7/8" ODF Soldered x 7/8" ODF Soldered, 30 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- High Moisture and Acid Removal Capacity
- Copeland™ Products Approved for POE Oils
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 3.64 Inch Diameter x 10.04 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Corrosion Resistant Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 41 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 1/2 Inch SAE Flare x 1/2 Inch SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant30
- Line TypeLiquid
- Nominal Connection Size7/8" in
- ApplicationLiquid Line
- Cutout Length8.4 in
- Diameter3.14 in
- Filter Drier Overall Length9.9 in
- Height3.14" in
- Lay In Length7.54 in
- Length9.9 in
- Shell Material & FinishPainted
- Shipping Height4 in
- Shipping Length11 in
- Shipping Weight2 lb
- Shipping Width4 in
- Solder Sprocket Depth0.75 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight3.11 lb
- Width7.54 in
