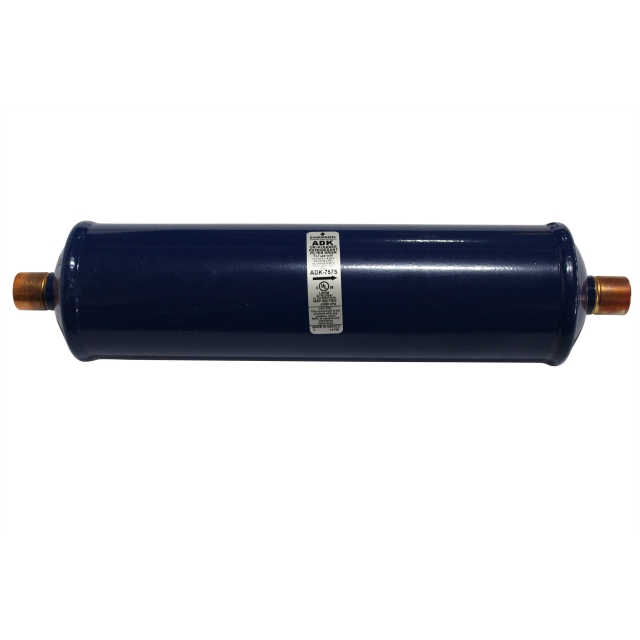

7/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN
7/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN
Description
Emerson Electric Co. (White-Rodgers) 3.64" x 15.55", 7/8" ODF Soldered x 7/8" ODF Soldered, 75 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Specifications
- Item: Reciprocating Compressor
- Size: 197.8 Millimeter Length x 160.5 Millimeter Width x 204 Millimeter Height
- Used On Item: Refrigerant/HBP/CBP High/Commercial Back Pressure Air Conditioner
- Used On Item Part No: R134A/R513A
- Applicable Standard: UL (Canada and US), CE, SASO Connection Size 5/16 Inch ODF Soldered x 1/4 Inch ODF Soldered; Voltage Rating 115 Volt AC 60 Hertz 1-Phase; Current Rating 5.82 Amp (RLA), 8.81 Amp (MCC); Power Rating 1/3 HP; Capacity 4350 BTU per Hour; Displacement 10.33 Cubic Centimeter; Motor Starting Torque High; Motor Resistance 1.65 Ohm (Main), 3.44 Ohm (Start); Motor Type CSIR; Compressor Cooling Type Fan; Oil Type Polyolester; Oil Charge 284.9 Cubic Centimeter; Viscosity 32 cSt; Evaporating Temperature Range -15 to 15 Deg C
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant75
- Line TypeLiquid
- Nominal Connection Size7/8" in
- ApplicationLiquid Line
- Cutout Length14.05 in
- Diameter3.64 in
- Filter Drier Overall Length15.55 in
- Height3.64" in
- Lay In Length13.19 in
- Length15.55 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height3.78 in
- Shipping Length16.929 in
- Shipping Point37406
- Shipping Weight5.85 lb
- Shipping Width3.78 in
- Solder Sprocket Depth0.75 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight6.53 lb
- Width13.19 in
