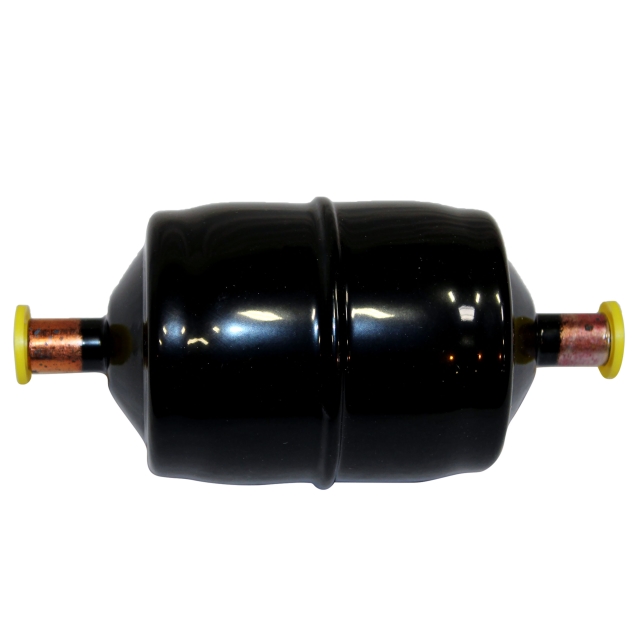

3/8" Sweat (ODF) Liquid Line Filter Drier ,8 CU IN
3/8" Sweat (ODF) Liquid Line Filter Drier ,8 CU IN
Description
Parker Hannifin Corp. Gold Label™ 3/8" ODF Soldered x 3/8" ODF Soldered, 5.2 Ton, 650 PSIG, Powder Painted, Solid Copper, Liquid Line, Filter Drier for R22/R-134a/R-404A/R-507/R-407C/R410A Refrigerant
Features & Benefits
- Unsurpassed Moisture and Acid Capacities Maximum Filtration Capability for Today's Systems
- Compatible with Mineral Oil, Alkybenzene and POE Lubricants
- Solid Molecular Sieve Core
Specifications
- Size: 5.3 Inch Length
- Material: Solid Copper
- Color/Finish: Powder Painted
- Used On Item: Refrigerant
- Used On Item Part No: R22/R-134a/R-404A/R-507/R-407C/R410A
- Applicable Standard: UL (Canada and US)
- End Connection 3/8 Inch ODF Soldered x 3/8 Inch ODF Soldered
- Shell Diameter 2.69 Inch
- Flow Capacity 5.2 Ton
- Pressure Rating 650 PSIG
Documents
Specifications
- BrandParker Hannifin
- BurnoutNo
- Connection TypeSweat (ODF)
- Effective Volume Desiccant8
- Line TypeLiquid
- Nominal Connection Size3/8" in
- RefrigerantR22, R410A
- Length5.29 in
- Maximum Working Pressure680 PSIG
- Shipping Height2.8 in
- Shipping Length7.1 in
- Shipping Point37406
- Shipping Weight0.0313 lb
- Shipping Width2.8 in
- UL ListedFalse
- UL RecognizedFalse
- Weight1.23 lb
- Width3.83 in
