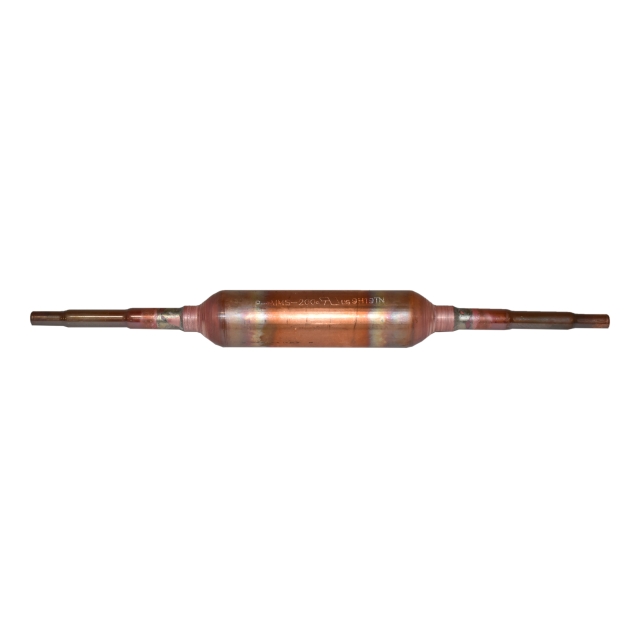

1/4"-3/8"-5/16" Sweat (ODF) Liquid Line Filter Drier ,1 CU IN
1/4"-3/8"-5/16" Sweat (ODF) Liquid Line Filter Drier ,1 CU IN
Description
Parker Hannifin Corp. 3/16 to 5/16" ID x 1/4 to 3/8" OD Inlet Tube, 3/16 to 5/16" ID x 1/4 to 3/8" OD Outlet Tube, 10.07" L, 700 PSI, Copper, Directional, Refrigerant Filter Drier
Features & Benefits
- Worldwide OEM Acceptance and Usage
- All Copper Construction for Corrosion Resistance and Simplified Brazing
- 100 Percent Molecular Sieve
- Compatible with Commercially Available Refrigerant and Lubricant
- Made in USA
Specifications
- Size: 10.07 Inch Length
- Material: Copper
- Used On Item: Air Conditioner, Heat Pump and Small Refrigeration System
- Applicable Standard: UL (Canada and US)
- Type Directional
- Refrigerant Type R134A/R-404A/R-502/R507/R-22/R-410A
- Inlet Tube Size 3/16 to 5/16 Inch Inner Diameter x 1/4 to 3/8 Inch Outer Diameter
- Outlet Tube Size 3/16 to 5/16 Inch Inner Diameter x 1/4 to 3/8 Inch Outer Diameter
- Tube Diameter 1 Inch
- Pressure Rating 700 PSI
- Molecular Sieve Weight 20 Gram
Documents
Specifications
- BrandParker Hannifin
- BrandParker Hannifin
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant1
- Line TypeLiquid
- Nominal Connection Size1/4" in, 3/8" in, 5/16" in
- RefrigerantR134A, R404A, R410A, R507
- ApplicationAir Conditioning, Heat Pump, And Small Refrigeration Systems
- Diameter1 in
- Height1 in
- Length10.5 in
- Maximum Working Pressure750 PSIG
- Refrigerant Charge Amount (Lbs)1
- Shell Material & FinishCopper
- Shipping Height1 in
- Shipping Length14 in
- Shipping Point37406
- Shipping Weight0.1 lb
- Shipping Width2.5 in
- TypeSpun Copper
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight0.22 lb
- Width1 in
