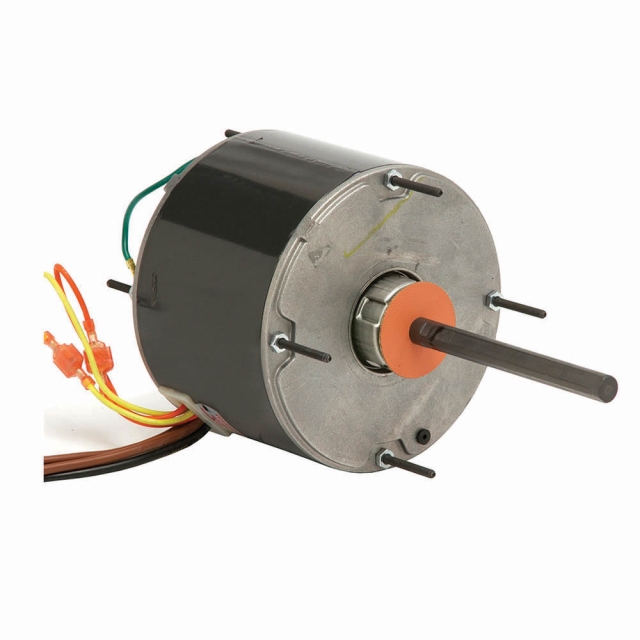

1/2 HP 460V CONDENSER MOTOR
1/2 HP 460V CONDENSER MOTOR
Description
Replacement Motor
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Air Over (TEAO)
- Frame Size48Y
- HP1/2
- Insulation ClassClass B
- Line Voltage (60Hz)480V
- Motor Thermal ProtectionAuto
- Number Of Poles6-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1115
- RPM Range1001-1100
- Shaft Diameter1/2"
- Shaft PositionAll Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
- TypePSC Blower Motor
- VarietySplit Phase
- Voltage460V
- Ambient60 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps1.5
- Length12.4 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodStud
- Run Capacitor10/370
- Service Factor1
- Shaft Length6 in
- Shipping Height7 in
- Shipping Length20 in
- Shipping Weight19 lb
- Shipping Width8 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage460
- Weight19 lb
