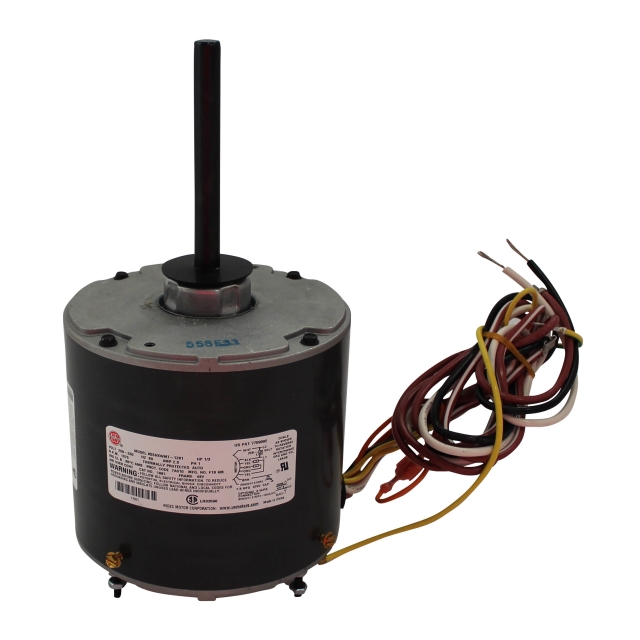

1/3HP 1075RPM 230VOLT MOTOR
1/3HP 1075RPM 230VOLT MOTOR
Description
Replacement Motor
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Bearing TypeSleeve
- Enclosure TypeTotally Enclosed Air Over (TEAO)
- Frame Size48Y
- HP1/3
- Insulation ClassClass B
- Motor Thermal ProtectionAuto
- Mounting MethodBelly Band
- Number Of Poles6-Pole
- Number of Speeds1
- RotationCounter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/2"
- Shaft PositionAll Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
- TypePSC Blower Motor
- VarietyPSC
- Voltage208/230V
- Ambient60 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps2.0
- Length10.1 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodAll Position
- Run Capacitor7.5/370
- Service Factor1
- Shaft Length5 in
- Shipping Height7.1 in
- Shipping Length7.4 in
- Shipping Point37406
- Shipping Weight13 lb
- Shipping Width13.2 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage208/230
- Weight14 lb
