15 HP 3 PH MOTOR
15 HP 3 PH MOTOR
Description

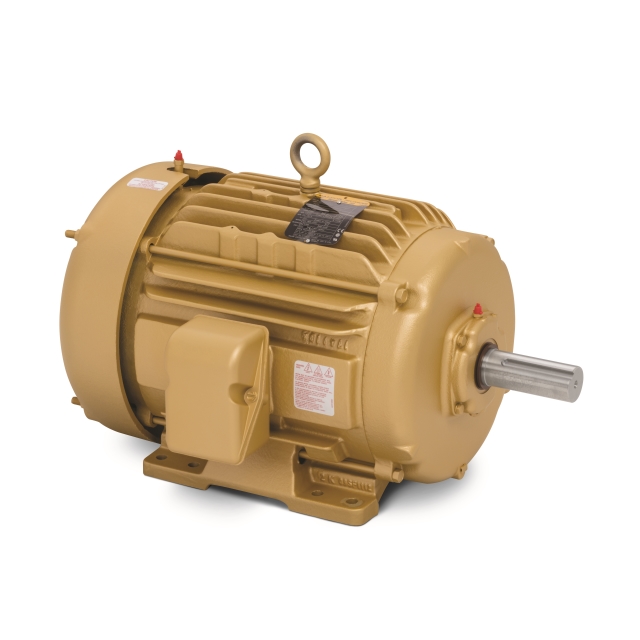

ABB Motors and Mechanical Inc. (Baldor-Reliance) 15 HP, 230/460 VAC 60 Hz 3-Phase, 36.2/18.1 A, 1765 RPM, F Insulation, Iron 254T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
Specifications
- Enclosure Type: TEFC
- Power Rating: 15 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 35 Amp at 230 Volt AC, 17.5 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 3520 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 91 Percent
- NEMA Frame Size: 254T
- Insulation Class: F
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA Overall Length 23.28 Inch; Shaft Diameter 1.625 Inch; Motor Type 0930M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 87; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size254T
- HP15
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1765
- RPM Range1701-1800
- Shaft Diameter1 5/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps18.1
- Length23.28 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF1
- Service Factor1.15
- Shaft Length4
- Shipping Height19 in
- Shipping Length27.5 in
- Shipping Point37406
- Shipping Weight270 lb
- Shipping Width20.5 in
- TypeGeneral Purpose
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
