1HPTEFC 3600 230460 56F MOTOR
1HPTEFC 3600 230460 56F MOTOR
Description

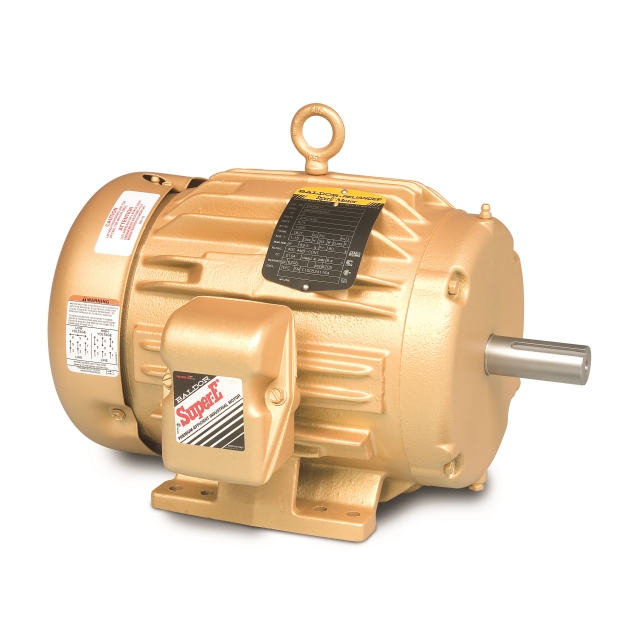

ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 1 HP, 230/460 VAC 60 Hz 3-Phase, 2.8/1.4 A, 3450 RPM, H Insulation, Steel 56 Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, HVAC Shaft Grounding AC Motor
Features & Benefits
- RoHS Compliant
Specifications
- Enclosure Type: XPFC
- Power Rating: 15 HP at 50 Hertz, 20 HP at 60 Hertz
- Voltage Rating: 190/230/380/460 Volt AC 3-Phase
- Frequency Rating: 50/60 Hertz
- Motor FLA: 44 Amp at 190 Volt AC, 48 Amp at 230 Volt AC, 22 Amp at 380 Volt AC, 24 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1470/1770 RPM
- Reversible: Yes
- Service Factor: 1
- Efficiency: 93 Percent
- NEMA Frame Size: 256T
- Insulation Class: B
- Frame Material: Iron
- Application: General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 25.5 Inch; Shaft Diameter 1.625 Inch; Motor Type X0960M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Starting Method Direct on Line; Number of Poles 4; Power Factor 83; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size56
- HP1
- Insulation ClassClass H
- Line Voltage (60Hz)480V
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3450
- RPM Range3000+
- Shaft Diameter5/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps1.4
- Length12.23 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.25
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight32 lb
- Shipping Width0 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
