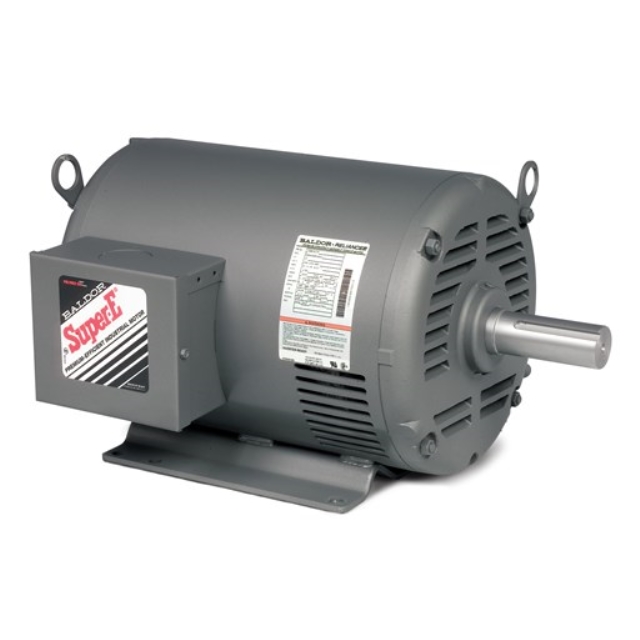

Baldor

20HP 208/230/460 MOTOR

SKU:EHM2515T
Baldor

20HP 208/230/460 MOTOR

SKU:EHM2515T

    Description

    ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 20 HP, 230/460 VAC 60 Hz 3-Phase, 48/24 A, 1765 RPM, F Insulation, Steel 256T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, HVAC Motor

    Features & Benefits

    • External Provisions for Bearing Current Mitigation
    • Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2

    Specifications

    • Enclosure Type: OPSB, IP22
    • Power Rating: 5 HP
    • Voltage Rating: 230/460 Volt AC 3-Phase
    • Frequency Rating: 60 Hertz
    • Motor FLA: 13.2 Amp at 230 Volt AC, 6.6 Amp at 460 Volt AC
    • Number of Speeds: 1
    • Speed Rating: 1760 RPM
    • Reversible: Yes
    • Service Factor: 1.15
    • Efficiency: 89.5 Percent
    • NEMA Frame Size: 184T
    • Insulation Class: F
    • Frame Material: Steel
    • Mounting: Foot
    • Application: Fan, Pump, Blower, Air Handling, HVAC System, General Purpose
    • Approval: UL, CSA
    • Overall Length 16.5 Inch; Shaft Diameter 1.125 Inch; Motor Type 3640M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 80; Temperature Rating 40 Deg C

    Specifications

    • BrandBaldor
    • Bearing TypeBall
    • HP20
    • Line Voltage (60Hz)240V
    • RotationCCW/CW
    • TypeBlower Motor
    • CSA ListingTrue
    • Frequency50/60
    • Mounting MethodRigid Base
    • Shipping Height0.1 in
    • Shipping Length0.1 in
    • Shipping Weight225 lb
    • Shipping Width0.1 in
    • UL ListedFalse
    • UL ListedTrue
    • UL RecognizedFalse
    • UL RecognizedTrue
