3HP F2 MOTOR
3HP F2 MOTOR
Description

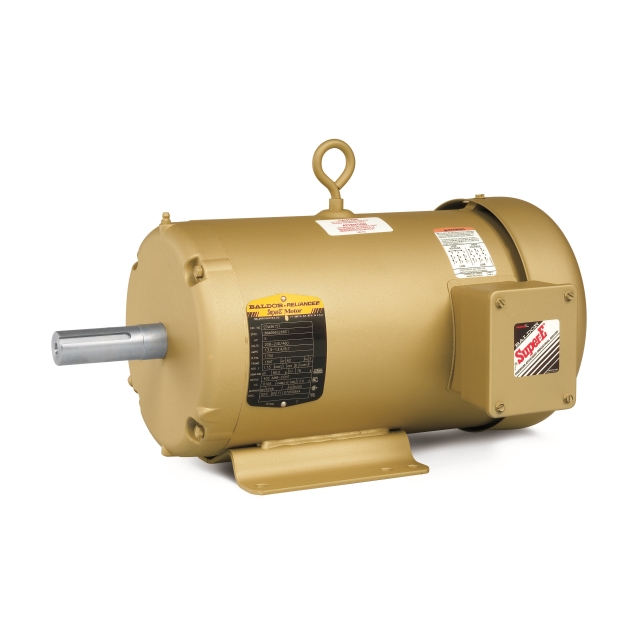

ABB Motors and Mechanical Inc. (Baldor-Reliance) 3 HP, 230/460 VAC 60 Hz 3-Phase, 8.4/4.2 A, 1760 RPM, F Insulation, Steel 182T Frame, Foot Mount, F2 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Dynamically Balanced Rotor to Increase Bearing Life
- Cast Iron or Heavy Gauge Steel Design
- RoHS Compliant
Specifications
- Enclosure Type: TEFC
- Power Rating: 7.5 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 19 Amp at 230 Volt AC, 9.5 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1770 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 91.7 Percent
- NEMA Frame Size: 213T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 19.01 Inch; Shaft Diameter 1.375 Inch; Motor Type 3738M; Base Indicator Rigid; Mounting Arrangement F2; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 80; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size182T
- HP3
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1760
- RPM Range1701-1800
- Shaft Diameter1 1/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps4.2
- Length16.55 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF2
- Service Factor1.15
- Shipping Height6.62 in
- Shipping Length10.2 in
- Shipping Weight73 lb
- Shipping Width9.3 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
