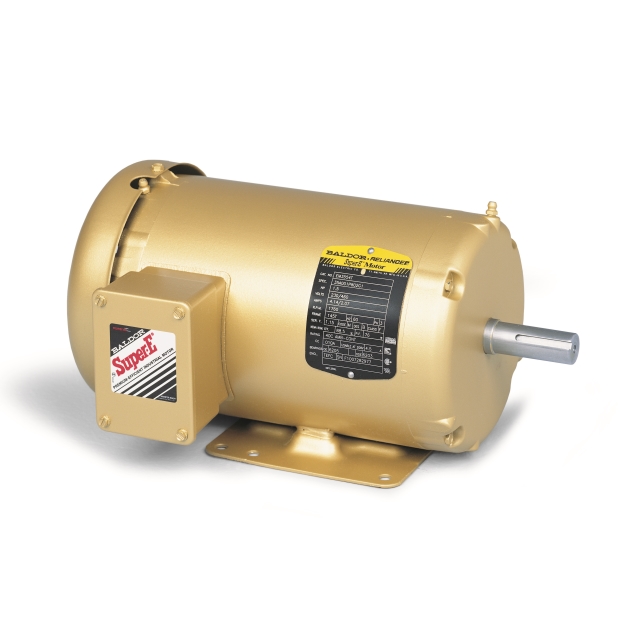

3HP TEFC 3PH 3600 145T MOTOR
3HP TEFC 3PH 3600 145T MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 3 HP, 575 VAC 60 Hz 3-Phase, 2.9 A, 3450 RPM, F Insulation, Steel 143T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
Specifications
- Enclosure Type: TEFC
- Power Rating: 1.5 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 4.8 Amp at 230 Volt AC, 2.4 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1165 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 87.5 Percent
- NEMA Frame Size: 182T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA Overall Length 16.55 Inch; Shaft Diameter 1.125 Inch; Motor Type 3632M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 6; Power Factor 67; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size145T
- HP3
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3450
- RPM Range3000+
- Shaft Diameter7/8
- TypeCondenser Fan Motor
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps2.9
- Length14.17 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight60 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage575
