3PH 20HP MOTOR
3PH 20HP MOTOR
Description

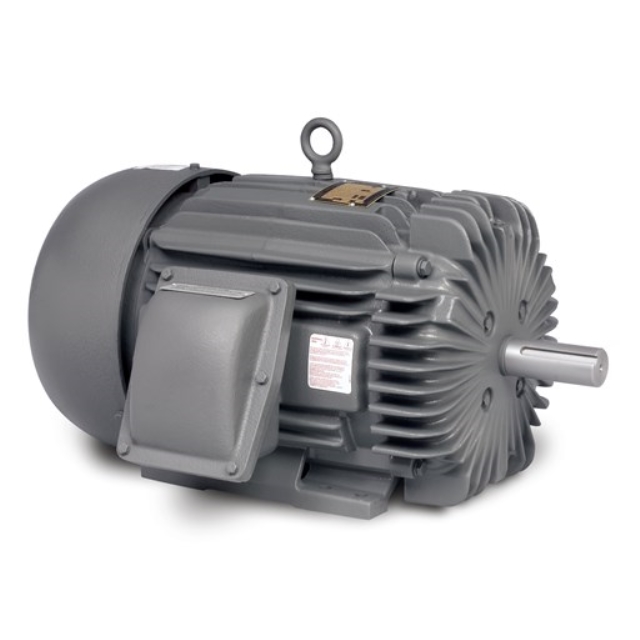

ABB Motors and Mechanical Inc. (Baldor-Reliance) 15/20 HP, 190/230/380/460 VAC 50/60 Hz 3-Phase, 44/48/22/24 A, 1470/1770 RPM, B Insulation, Iron 256T Frame, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, XPFC, General Purpose AC Motor
Features & Benefits
- External Provisions for Bearing Current Mitigation
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 15 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 36 Amp at 230 Volt AC, 18 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1765 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 93 Percent
- NEMA Frame Size: 254T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Air Handling, HVAC System, General Purpose
- Approval: UL, CSA Overall Length 23.19 Inch; Shaft Diameter 1.625 Inch; Motor Type 3948M; Base Indicator Rigid; Mounting Arrangement F2; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 85; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- HP20
- TypeBlower Motor
- Shipping Weight396 lb
- UL ListedFalse
- UL RecognizedFalse
