50HP 575V 3/60 326TFRAME MOTOR
50HP 575V 3/60 326TFRAME MOTOR
Description

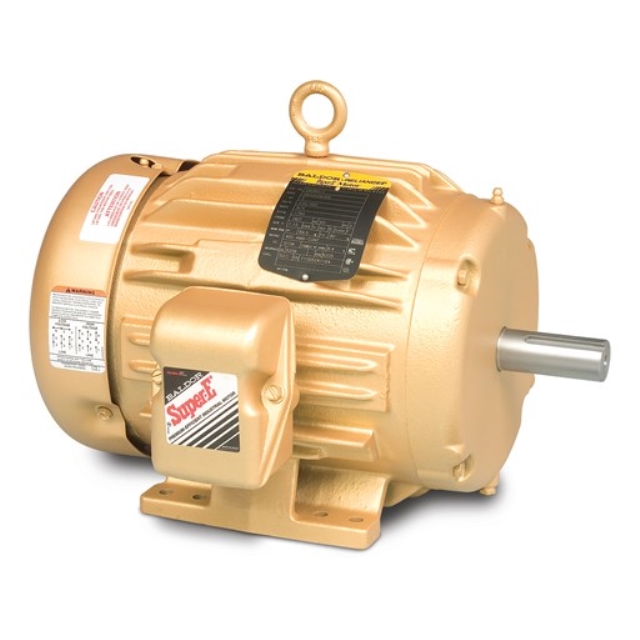

ABB Motors and Mechanical Inc. (Baldor-Reliance) 50 HP, 575 VAC 60 Hz 3-Phase, 46 A, 1775 RPM, F Insulation, Iron 326T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Class H Insulation for Increased Protection on Inverter Use
- Internal Grounding Ring for Bearing Current Mitigation on DE Retainer Ring
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- RoHS Compliant
Specifications
- Enclosure Type: TEFC
- Power Rating: 15 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 36.2 Amp at 230 Volt AC, 18.1 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1765 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 92.4 Percent
- NEMA Frame Size: 254T
- Insulation Class: H
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Unit Handling, HVAC System, General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 23.3 Inch; Shaft Diameter 1.625 Inch; Motor Type 0944M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 83; Temperature Rating 40 Deg C; Includes Internal AEGIS Bearing Protection Ring
Specifications
- BrandBaldor
- TypeCondenser Fan Motor
- Shipping Weight623 lb
- UL ListedFalse
- UL RecognizedFalse
