50HP TEFC 326TS 3PHASE MOTOR
50HP TEFC 326TS 3PHASE MOTOR
Description

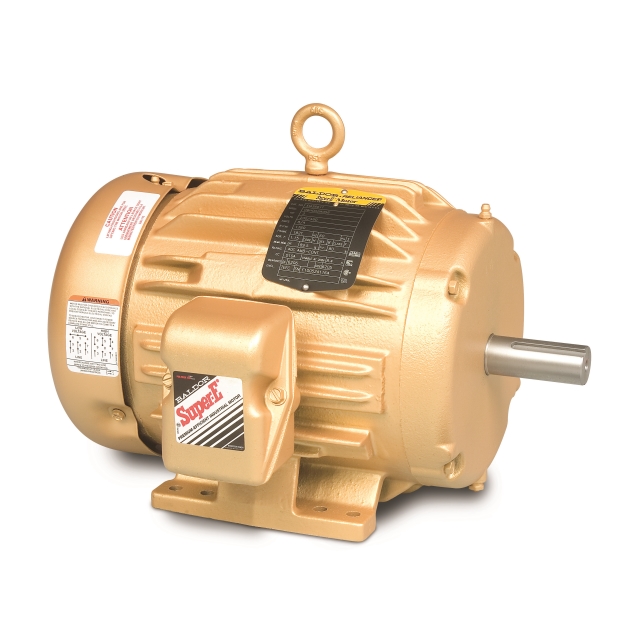

ABB Motors and Mechanical Inc. (Baldor-Reliance) 50 HP, 230/460 VAC 60 Hz 3-Phase, 112/56 A, 3540 RPM, F Insulation, Iron 326TS Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
Specifications
- Enclosure Type: TEFC
- Power Rating: 30 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 78 Amp at 230 Volt AC, 39 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1180 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 93 Percent
- NEMA Frame Size: 326T
- Insulation Class: F
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV Overall Length 30.28 Inch; Shaft Diameter 2.125 Inch; Motor Type 1264M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 6; Power Factor 78; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size326TS
- HP50
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3540
- RPM Range3000+
- Shaft Diameter1 7/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps56.0
- Length28.78 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF
- Service Factor1.15
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight586 lb
- Shipping Width0 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
