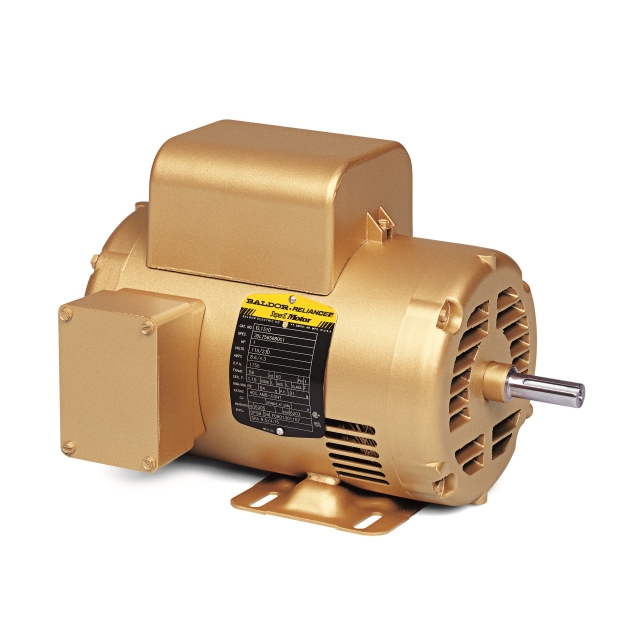

56FR 3/4HP 1750RPM 1PHASE MOTOR
56FR 3/4HP 1750RPM 1PHASE MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 0.75 HP, 115/230 VAC 60 Hz 1-Phase, 6.5/3.5 A, 1750 RPM, F Insulation, Steel 56 Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, ODP, IP22, General Purpose AC Motor
Features & Benefits
- Low Noise Vibration Dampening Base
- Dynamically Balanced Rotor to Increase Bearing Life
- Superior Switch Design Provides Optimized Torque Profiles
- Robust Heavy Gauge Steel Design
- Optimized Airflow Design Providing Higher Horsepower in a Smaller Package
- RoHS Compliant
Specifications
- Enclosure Type: ODP, IP22
- Power Rating: 1.5 HP
- Voltage Rating: 115/230 Volt AC 1-Phase
- Frequency Rating: 60 Hertz
- Number of Speeds: 1
- Speed Rating: 3480 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 82 Percent
- NEMA Frame Size: 56H
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Air Handling, Material Handling, Machine Tool, Conveyor, Pump, Fan, General Purpose
- Approval: UL, CSA RoHS Compliant; Overall Length 12.62 Inch; Shaft Diameter 0.625 Inch; Motor Type 3532LC; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 99; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Drip Proof (ODP)
- Frame Size56
- HP3/4
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1800
- RPM Range1701-1800
- Shaft Diameter5/8
- TypeCondenser Fan Motor
- Voltage115/230V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps3.5
- Length12.07 in
- Motor Phase1
- Motor RPM1800
- Mounting MethodF1
- Service Factor1.25
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight39 lb
- Shipping Width0 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage115/230
