575V MOTOR
575V MOTOR
Description

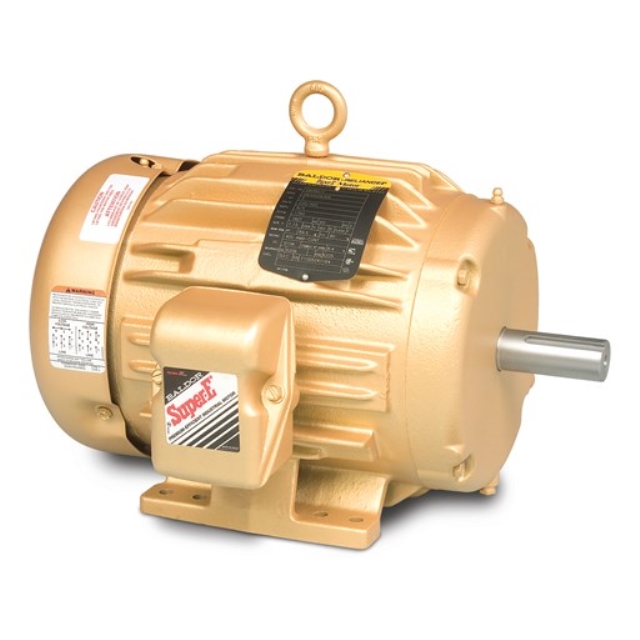

ABB Motors and Mechanical Inc. (Baldor-Reliance) 40 HP, 575 VAC 60 Hz 3-Phase, 39 A, 1775 RPM, F Insulation, Iron 324T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Class H Insulation for Increased Protection on Inverter Use
- Internal Grounding Ring for Bearing Current Mitigation on DE Retainer Ring
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- RoHS Compliant
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 1.5 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 4 Amp at 230 Volt AC, 2 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 3490 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 84 Percent
- NEMA Frame Size: 143T
- Insulation Class: H
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Unit Handling, HVAC System, General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 11.12 Inch; Shaft Diameter 0.875 Inch; Motor Type 3518M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 83; Temperature Rating 40 Deg C; Includes Internal AEGIS Bearing Protection Ring
Specifications
- BrandBaldor
- TypeCondenser Fan Motor
- Shipping Weight575 lb
- UL ListedFalse
- UL RecognizedFalse
