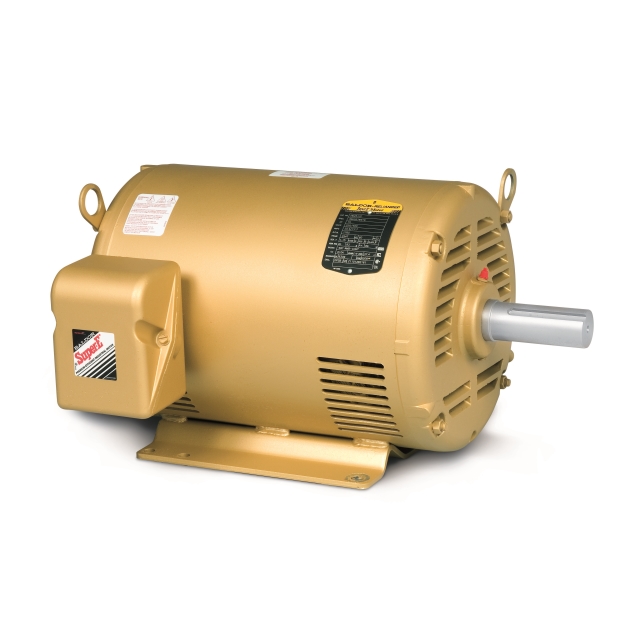

60HP OPSB 326TS 3PH MOTOR
60HP OPSB 326TS 3PH MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 60 HP, 230/460 VAC 60 Hz 3-Phase, 136/68 A, 3540 RPM, F Insulation, Steel 326TS Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, OPSB, IP22, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Optimized Airflow Design Providing Higher Horsepower in a Smaller Package
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 100 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 220 Amp at 230 Volt AC, 110 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 3540 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 93.6 Percent
- NEMA Frame Size: 365TS
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV Overall Length 27.81 Inch; Shaft Diameter 1.875 Inch; Motor Type 4266M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 91; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size326TS
- HP60
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3540
- RPM Range3000+
- Shaft Diameter1 7/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps68.0
- Length25.19 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF
- Service Factor1.15
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight458 lb
- Shipping Width0 in
- TypeGeneral Purpose
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
