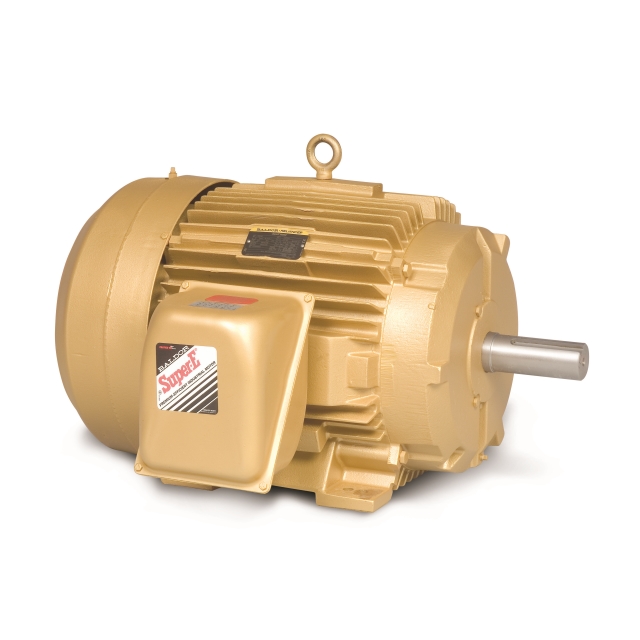

60HP TEFC 364T PH3 MOTOR
60HP TEFC 364T PH3 MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 60 HP, 230/460 VAC 60 Hz 3-Phase, 140/70 A, 1800 RPM, F Insulation, Iron 364T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
Specifications
- Enclosure Type: TEFC
- Power Rating: 100 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 224 Amp at 230 Volt AC, 112 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1785 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 95.4 Percent
- NEMA Frame Size: 405T
- Insulation Class: F
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: CSA (Canada and US), EEV Overall Length 38.04 Inch; Shaft Diameter 2.875 Inch; Motor Type A40064M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Starting Method Direct on Line; Number of Poles 4; Power Factor 87; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size364T
- HP60
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1780
- RPM Range1701-1800
- Shaft Diameter2 3/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps67.8
- Length33.48 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF
- Service Factor1.15
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight912 lb
- Shipping Width0 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage230/460
