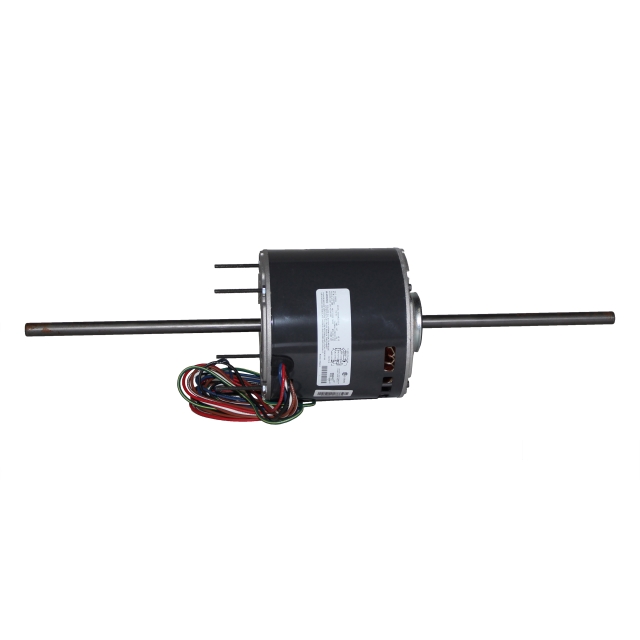

MOTOR DOUBLE SHAFT 1/2HP 208230V
MOTOR DOUBLE SHAFT 1/2HP 208230V
Description
Replacement Motor
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Bearing TypeBall
- Enclosure TypeODP
- Frame Size48Y
- HP1/2
- Insulation ClassClass B
- Motor Thermal ProtectionAuto
- Number Of Poles6-Pole
- Number of Speeds3
- RotationClockwise, Counter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/4
- TypePSC Blower Motor
- Voltage208/230V
- Ambient40 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps3.37
- Length22 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodHub, Stud
- Run Capacitor7.5/370
- Service Factor1
- Shaft Length6.75 in
- Shipping Height7 in
- Shipping Length27 in
- Shipping Point37406
- Shipping Weight16 lb
- Shipping Width7 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage208/230
- Weight16 lb
