Specifications
- BrandFactory Authorized Part
- Frame Size48Y
- HP1/3
- Insulation ClassClass B
- Motor Thermal ProtectionAuto
- Number Of Poles6-Pole
- Number of Speeds3
- RotationClockwise, Counter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/2"

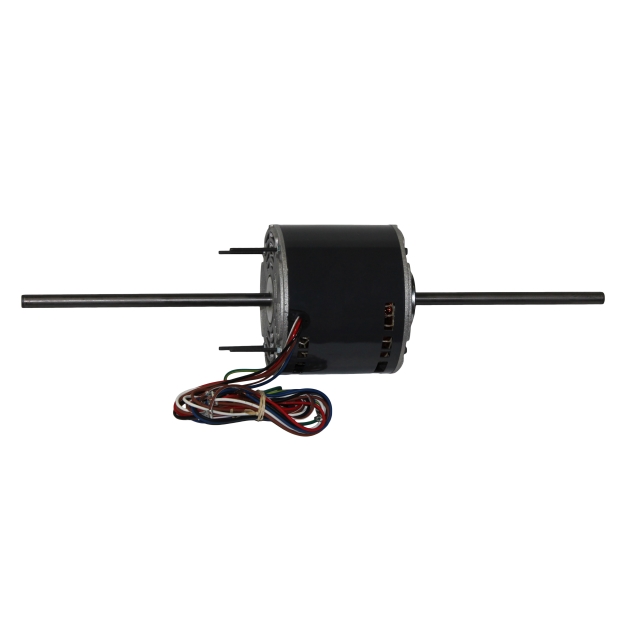

- TypePSC Blower Motor
- VarietyPSC
- Voltage208/230V
- Ambient40 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps1.9
- Length22 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodHub, Stud
- Service Factor1
- Shaft Length6.75 in
- Shipping Height7 in
- Shipping Length27 in
- Shipping Weight15.52 lb
- Shipping Width7 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage208/230
- Weight14 lb
