Description

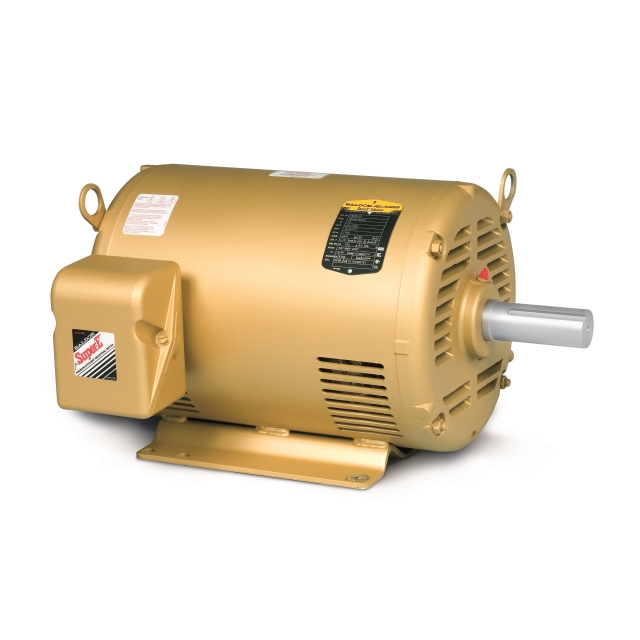

ABB Motors and Mechanical Inc. (Baldor-Reliance) 2 HP, 200 VAC 60 Hz 3-Phase, 6.5 A, 1750 RPM, F Insulation, Steel 145T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Optimized Airflow Design Providing Higher Horsepower in a Smaller Package
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 7.5 HP
- Voltage Rating: 200 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 23.3 Amp
- Number of Speeds: 1
- Speed Rating: 1770 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 91 Percent
- NEMA Frame Size: 213T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV Overall Length 16.32 Inch; Shaft Diameter 1.375 Inch; Motor Type 3734M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 77; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- BrandBaldor
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size145T
- HP2
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1750
- RPM Range1701-1800
- Shaft Diameter7/8
- TypeBlower Motor
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps6.5
- Length12.12 in
- Motor Phase3
- Motor RPM1750
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight40 lb
- Shipping Width0.1 in
- TypeGeneral Purpose
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage200
