MOTOR
MOTOR
Description

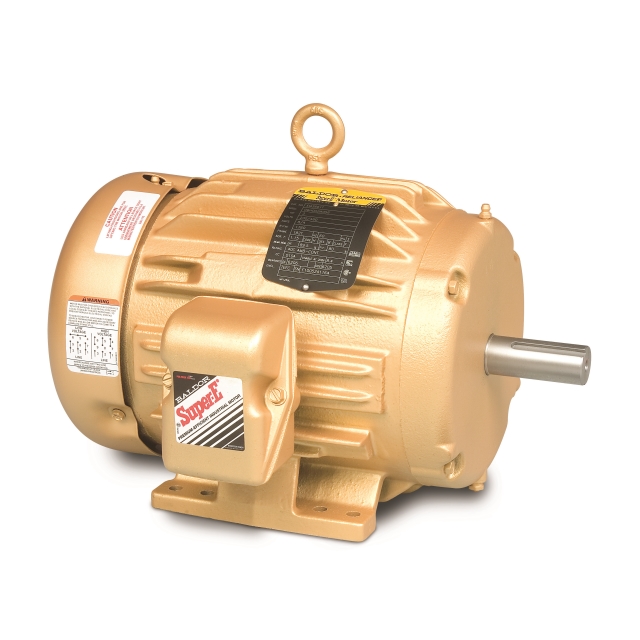

ABB Motors and Mechanical Inc. (Baldor-Reliance) 30 HP, 230/460 VAC 60 Hz 3-Phase, 76/38 A, 1760 RPM, F Insulation, Iron 286T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Class H Insulation for Increased Protection on Inverter Use
- Internal Grounding Ring for Bearing Current Mitigation on DE Retainer Ring
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
Specifications
- Enclosure Type: TEFC
- Power Rating: 30 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 76 Amp at 230 Volt AC, 38 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1760 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 93.6 Percent
- NEMA Frame Size: 286T
- Insulation Class: H
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Unit Handling, HVAC System, General Purpose
- Approval: UL, CSA, EEV Overall Length 27.76 Inch; Shaft Diameter 1.875 Inch; Motor Type 1056M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 80; Temperature Rating 40 Deg C; Includes Internal AEGIS Bearing Protection Ring
Specifications
- BrandBaldor
- Bearing TypeBall
- BrandBaldor
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size286T
- HP30
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1760
- RPM Range1701-1800
- Shaft Diameter1 7/8
- TypeBlower Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps38.0
- Length27.76 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF1
- Service Factor1.15
- Shipping Weight437 lb
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
