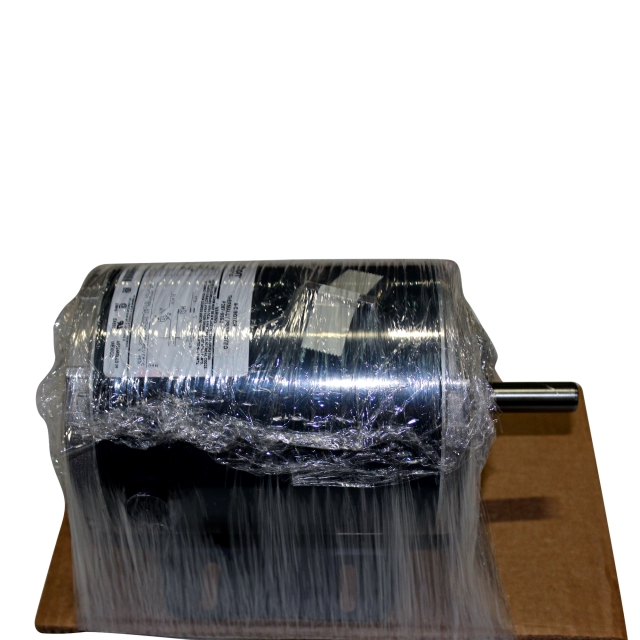

Blower Motor, Belted 1/2 hp 115V 56R Frame 6.5" Split Phase
Blower Motor, Belted 1/2 hp 115V 56R Frame 6.5" Split Phase
Description
Totaline Belted Blower Motor - Split Phase
- Open drip-proof construction
- 40°C Ambient
- Single phase, 60 hertz
- Reversible rotation by electrical connection
- Class A insulation - 1/6 thru 1/2hp
- Class B insulation - 3/4 thru 1hp
- 1725 rpm
- Auto thermal protection
* Mounting holes are combination 48 and 56, shaft height is 3.0”, includes 5/8” dia. shaft adapter
** Keyed motor shaft
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeSleeve
- Frame Size56
- HP1/2
- Insulation ClassClass A
- RotationClockwise, Counter Clockwise
- RPM Range1701-1800
- Shaft Diameter5/8
- TypeBelted
- TypePSC Condenser Fan Motor
- Voltage115V
- Ambient40 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps8.0
- Height6.5 in
- Motor Phase1
- Motor RPM1725
- Service Factor1.25
- Shaft Length2 in
- UL ListedTrue
- UL RecognizedTrue
