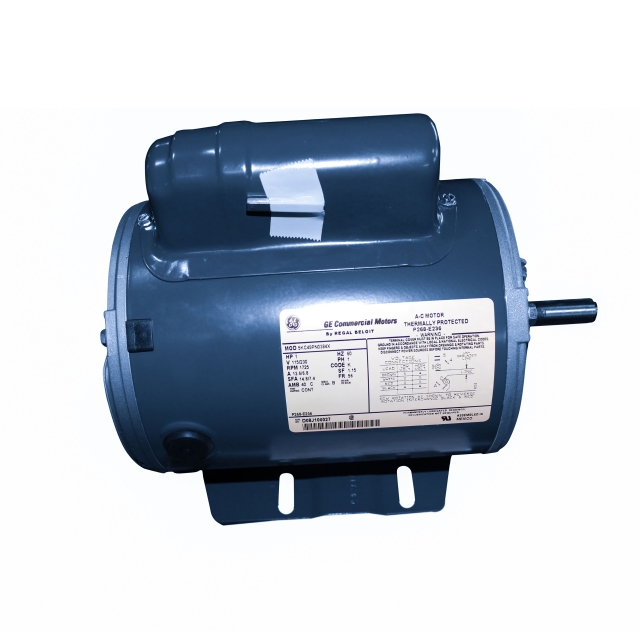

Capacitor Start Motor, Belted 1hp 115/230V 56 Fr 6.2"
Capacitor Start Motor, Belted 1hp 115/230V 56 Fr 6.2"
Description
- Resilient mount Open drip-proof construction
- Class A Insulation - 1/2 HP Class B Insulation
- 3/4 and 1 HP Reversible rotation by electrical reconnection
- Automatic reset thermal protection
- NEMA 56 Frame
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeBall
- Frame Size56
- HP1
- Insulation ClassClass B
- RotationClockwise, Counter Clockwise
- RPM1725
- RPM Range1701-1800
- Shaft Diameter5/8
- TypeBelted
- TypePSC Condenser Fan Motor
- Voltage115/230V
- Ambient40 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps13.0/6.5
- Height6.2 in
- Length11.5 in
- Motor Phase1
- Motor RPM1725
- Service Factor1.15
- Shaft Length2 in
- Shipping Height10 in
- Shipping Length15.8 in
- Shipping Point37406
- Shipping Weight30.5 lb
- Shipping Width10.5 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage115/230
- Weight28.2 lb
- Width6.5 in
