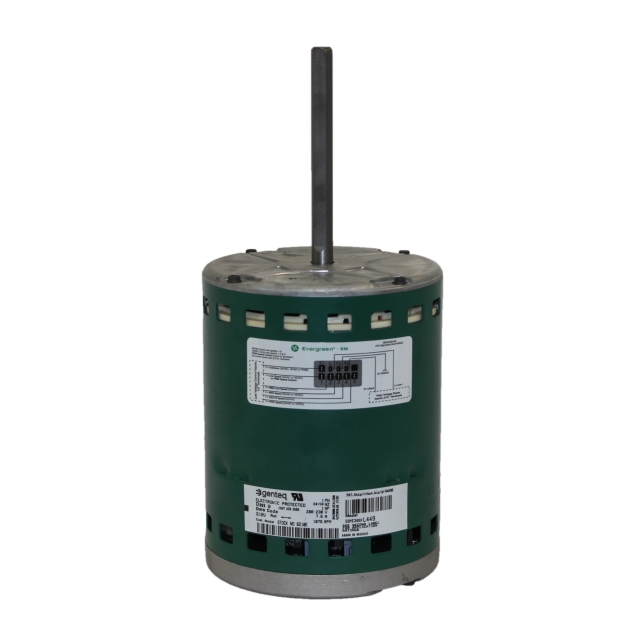

X-13 1HP 230V EVERGREEN MOTOR
X-13 1HP 230V EVERGREEN MOTOR
Description
- Replaces X13 or Endura Pro
- Replaces competitive OEM's Direct-Drive Blower motors designed with X-13 or equivalent competitive model constant torque standard ECM with 24VAC speed taps
- Available in 1/3, 1/2, 3/4 and 1HP ratings
- 115V or 208-230V single phase, 50/60 HZ, 1070rpm
- Pre-Programmed - 5 discrete speeds using 24VAC
- Permanently lubricated ball bearings
- NEMA 48 Frame
- UL and CSA recognized
- Automatic Dual Rotation
- Two Year Warranty
DOES NOT REPLACE MODELS 2.3, Eon, 2.5, 3.0 or 142R
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeBall
- Frame Size48
- HP1
- Mounting MethodBelly Band
- Number of Speeds5
- RotationClockwise, Counter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/2
- TypeDirect Drive
- TypeECM Blower Motor
- VarietyX-13
- Voltage208/230V
- Ambient45 °C
- CSA ListingTrue
- Frequency50Hz, 60Hz
- Full Load Amps7.6
- Height5.6 in
- Length12.17 in
- Motor Phase1
- Motor RPM1070
- Mounting MethodBelly Band
- Service Factor1
- Shaft Length4.5 in
- Shipping Height8.5 in
- Shipping Length16.5 in
- Shipping Point37406
- Shipping Weight25 lb
- Shipping Width8.5 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage208/230
- Warranty2 Years
- Weight19.3 lb
- Width5.58 in
