Factory Authorized Part

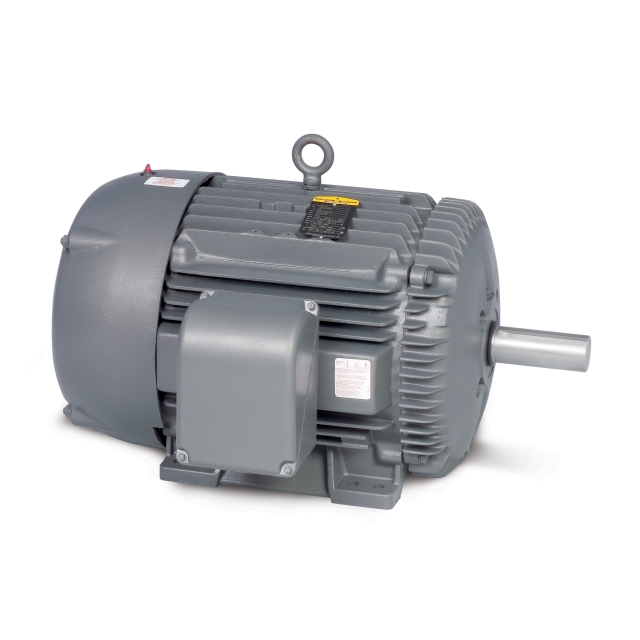

MOTOR

SKU:XEFRPM25154
Factory Authorized Part

MOTOR

SKU:XEFRPM25154

    Description

    This is a genuine Factory Authorized PartTM Model - XEFRPM25154. Below are some of the many benefits of purchasing FAP parts.



    Ease of Install and Service
    Provides exact drop-in replacement

    Performance
    Meets exact design specifications for optimum system performance

    Proprietary
    Design specifications are proprietary and not available to other parts manufacturers

    Quality
    Meets exact part design life testing for maximum reliability and durability

    Ratings
    Maintains agency listings and safety standards

    Warranty
    Preserves equipment warranty

    Documents

    There are no documents available.

    Specifications

    • BrandFactory Authorized Part
    • Bearing TypeBall
    • BrandFactory Authorized Part
    • Enclosure TypeTEFC
    • Frame SizeHL254T
    • HP15
    • Number of Speeds1
    • RotationCCW/CW
    • RPM1800
    • Shaft Diameter1 5/8
    • CSA ListingTrue
    • Frequency60
    • Full Load Amps15
    • Height11.96 in
    • Length23.86 in
    • Motor Phase3
    • Mounting MethodRigid Base
    • Service Factor1.15
    • Shaft Length3
    • UL ListedFalse
    • UL ListedFalse
    • UL RecognizedFalse
    • UL RecognizedFalse
    • Voltage460
    • Weight135 lb
