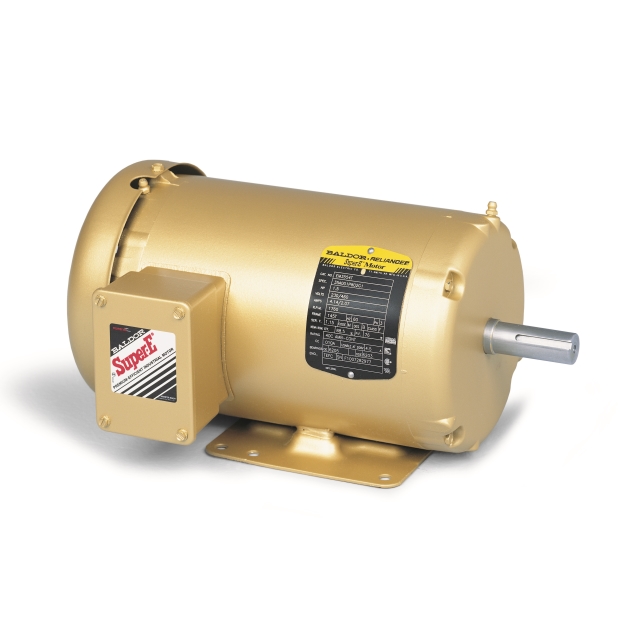

10HP 3600RPM 230/460V 215T TEFC MOTOR
10HP 3600RPM 230/460V 215T TEFC MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 10 HP, 208/230/460 VAC 3-Phase, 11.6 A, 3490 RPM, 215T Frame, F Insulation, Steel, F1 Foot Mount, TEFC, IP44, General Purpose AC Motor
Features & Benefits
- 60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 Hp ratings
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
- Designed for longevity with a 3 year warranty on premium efficient Super-E ® motors
- RoHS Compliant
Specifications
- Enclosure Type: TEFC, IP44
- Power Rating: 10 HP
- Voltage Rating: 208/230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 11.6 Amp
- Number of Speeds: 1
- Speed Rating: 3490 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 90.2 Percent
- NEMA Frame Size: 215T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA
- RoHS Compliant
- Overall Length 17.89 Inch
- Shaft Diameter 1.375 Inch
- Motor Type 3730M
- Base Indicator Rigid
- Mounting Arrangement F1
- Pulley End Bearing Type Ball
- Pulley Shaft Indicator Standard
- Starting Method Direct on Line
- Number of Poles 2
- Power Factor 88
- Temperature Rating 40 Deg C
Documents
There are no documents available.
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size215T
- HP10
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3490
- RPM Range3000+
- Shaft Diameter1 3/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps11.8
- Length17.89 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.15
- Shaft Length3.38
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight120 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
