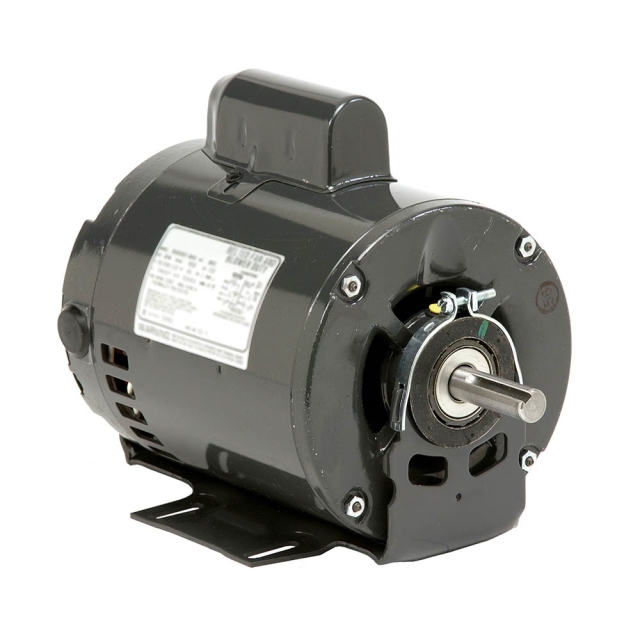

MTR 1HP 56FR 115/208-230V1800
![D1CPA2PH9_001.jpg](https://d1049ui2fjityy.cloudfront.net/userfiles/inriver/images/d1/cp/a2/d1cpa2ph9_001_medium.jpg)
![Factory Authorized Part](/userfiles/brand/factory%20authorized%20part_small.jpg?width=350&height=200)
MTR 1HP 56FR 115/208-230V1800
Description
Category: Motor
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Ambient40 °C
- Bearing TypeBall
- CSA ListingTrue
- Frame Size56
- Frequency60
- Full Load Amps8.8/4.4
- Height8.5 in
- HP1
- Length12.32 in
- Motor Phase1
- Mounting MethodCradle
- Number of Speeds1
- RotationCCW/CW
- RPM1725
- Service Factor1.15
- Shaft Diameter5/8
- Shaft Length1.875
- Shipping Weight32 lb
- TypePSC Blower Motor
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage115/230
- Weight31 lb
- Width5.812 in
