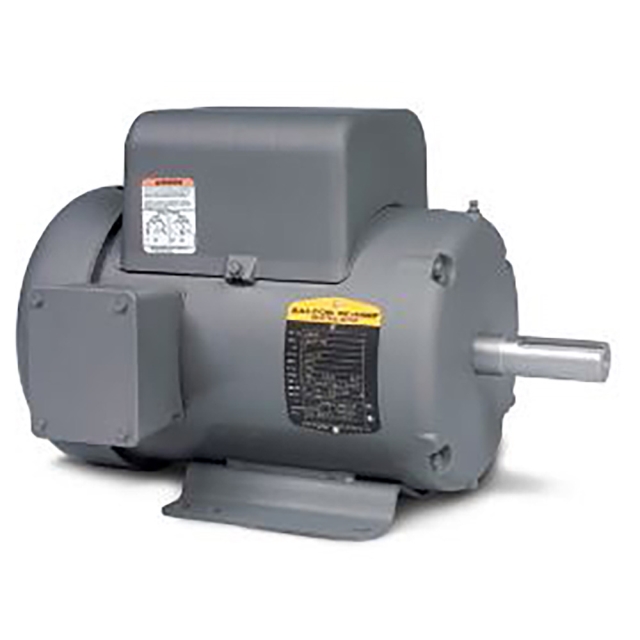

2HP 1725RPM 1/60/230 TEFC MOTOR
2HP 1725RPM 1/60/230 TEFC MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 2 HP, 208/230 VAC 60 Hz 1-Phase, 8.7/8 A, 1730 RPM, F Insulation, Steel 56HZ Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, IP54, General Purpose AC Motor
Specifications
- Item: Compressor
- Size: 7.5 Inch x 7.5 Inch Mounting Feet
- Used On Item: Low Temperature Refrigerant Motor Type 3-Phase Across the Line; Motor Protection Internal Line Break/Electronic Overcurrent; Nominal Capacity 11000 BTU/Hour; Refrigerant Type R-404A; Voltage Rating 380/415 Volt AC 50 Hertz, 460 Volt AC 60 Hertz 3-Phase; Current Rating 3.3 Amp (RLA), 30 Amp (LRA), 8 Amp (MCC); Motor Power Rating 2009 Watt at -10/120, 2080 Watt at -10/130 (460 Volt), 1733 Watt at -10/120 1690 Watt at -10/130 (380/415 Volt); Oil Charge 50 Ounce
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size56H
- HP2
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1725
- RPM Range1701-1800
- Shaft Diameter7/8
- TypeBlower Motor
- Voltage208/230V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps8.1
- Length13.31 in
- Motor Phase1
- Motor RPM1800
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight46 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage208/230
