2HP 3600RPM 230/460V 143T OPEN MOTOR
2HP 3600RPM 230/460V 143T OPEN MOTOR
Description

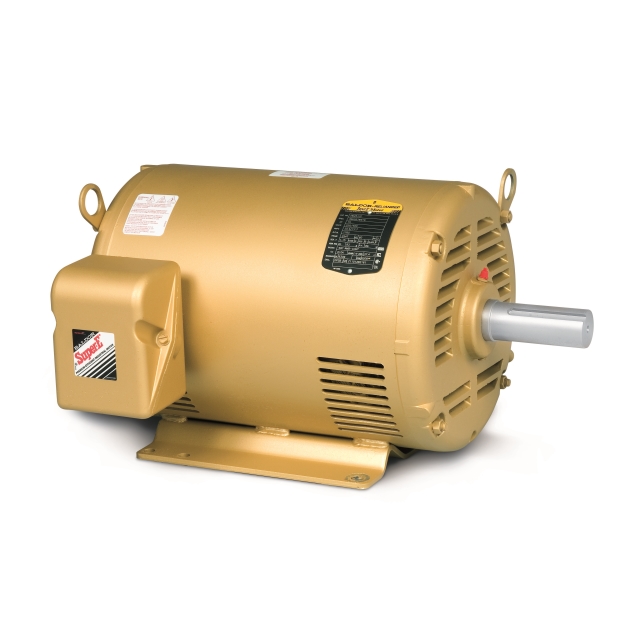

ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 2 HP, 230/460 VAC 60 Hz 3-Phase, 5/2.5 A, 3450 RPM, H Insulation, Steel 143T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, OPSB, IP22, HVAC Shaft Grounding AC Motor
Features & Benefits
- Class H Insulation for Increased Protection on Inverter Use
- Internal Grounding Ring for Bearing Current Mitigation on DE Retainer Ring
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- RoHS Compliant
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 3 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 7.6 Amp at 230 Volt AC, 3.8 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 3450 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 85.5 Percent
- NEMA Frame Size: 145T
- Insulation Class: H
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Unit Handling, HVAC System, General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 13 Inch; Shaft Diameter 0.875 Inch; Motor Type 3530M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 87; Temperature Rating 40 Deg C; Includes Internal AEGIS Bearing Protection Ring
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size143T
- HP2
- Insulation ClassClass H
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3450
- RPM Range3000+
- Shaft Diameter7/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps2.5
- Length11.6 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight41 lb
- Shipping Width0 in
- TypeGeneral Purpose
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
