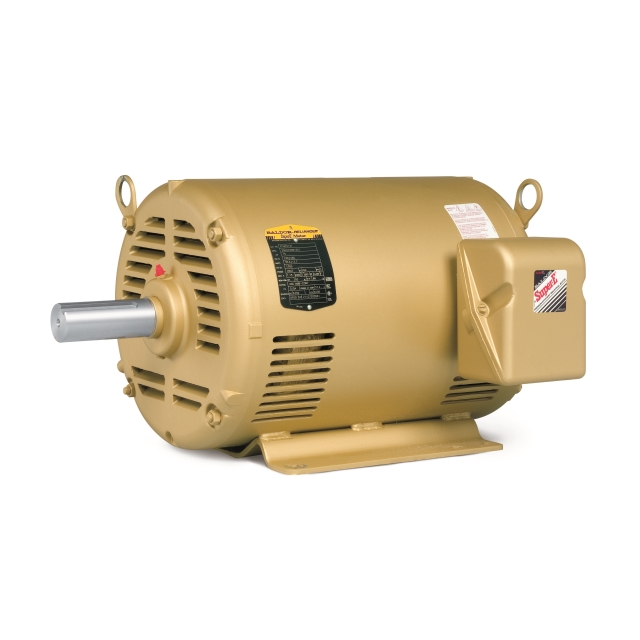

30HP 1800RPM 230/460V 286T ODP MOTOR
30HP 1800RPM 230/460V 286T ODP MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 30 HP, 230/460 VAC 60 Hz 3-Phase, 72/36 A, 1775 RPM, F Insulation, Steel 286T Frame, Foot Mount, F2 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, General Purpose AC Motor
Features & Benefits
- RoHS Compliant
Specifications
- Enclosure Type: Open
- Power Rating: 0.75 HP
- Voltage Rating: 200 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 2.7 Amp
- Number of Speeds: 1
- Speed Rating: 1750 RPM
- Reversible: Yes
- Service Factor: 1.25
- Efficiency: 81.5 Percent
- NEMA Frame Size: 56
- Insulation Class: F
- Frame Material: Steel
- Application: General Purpose RoHS Compliant; Overall Length 11.07 Inch; Shaft Diameter 0.625 Inch; Motor Type 3514M; Base Indicator Rigid; Mounting Arrangement F2; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 72; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size286T
- HP30
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1800
- RPM Range1701-1800
- Shaft Diameter1 7/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps36.0
- Length26.06 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF2
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight378 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
