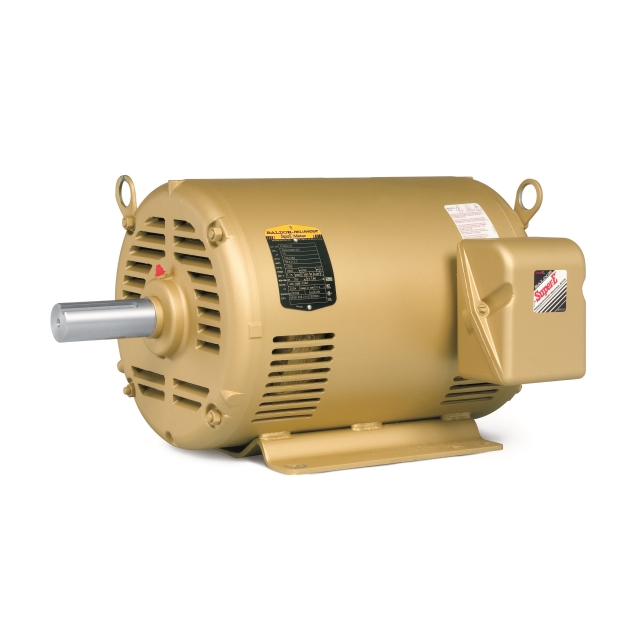

Baldor

MTR 3HP ODP 182T 1800 200V

SKUEFM3211T-8
Baldor

MTR 3HP ODP 182T 1800 200V

SKUEFM3211T-8

    Description

    ABB Motors and Mechanical Inc. (Baldor-Reliance) 3 HP, 200 VAC 60 Hz 3-Phase, 9.7 A, 1765 RPM, F Insulation, Steel 182T Frame, Foot Mount, F2 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, General Purpose AC Motor

    Features & Benefits

    • Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
    • Dynamically Balanced Rotor to Increase Bearing Life
    • Cast Iron or Heavy Gauge Steel Design

    Specifications

    • Enclosure Type: OPSB, IP22
    • Power Rating: 7.5 HP
    • Voltage Rating: 230/460 Volt AC 3-Phase
    • Frequency Rating: 60 Hertz
    • Motor FLA: 19.4 Amp at 230 Volt AC, 9.7 Amp at 460 Volt AC
    • Number of Speeds: 1
    • Speed Rating: 1770 RPM
    • Reversible: Yes
    • Service Factor: 1.15
    • Efficiency: 91 Percent
    • NEMA Frame Size: 213T
    • Insulation Class: F
    • Frame Material: Steel
    • Mounting: Foot
    • Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
    • Approval: UL, CSA, EEV
    • Overall Length 16.32 Inch; Shaft Diameter 1.375 Inch; Motor Type 3734M; Base Indicator Rigid; Mounting Arrangement F2; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 79; Temperature Rating 40 Deg C

    Specifications

    • BrandBaldor
    • Frame Size182T
    • HP3
    • Insulation ClassClass F
    • Mounting MethodRigid
    • Number Of Poles4-Pole
    • Number of Speeds1
    • RotationClockwise, Counter Clockwise
    • RPM Range1701-1800
    • TypeCondenser Fan Motor
    • Frequency60Hz
    • Motor Phase3

    Equipment Parts List

    There is no data available for this product
