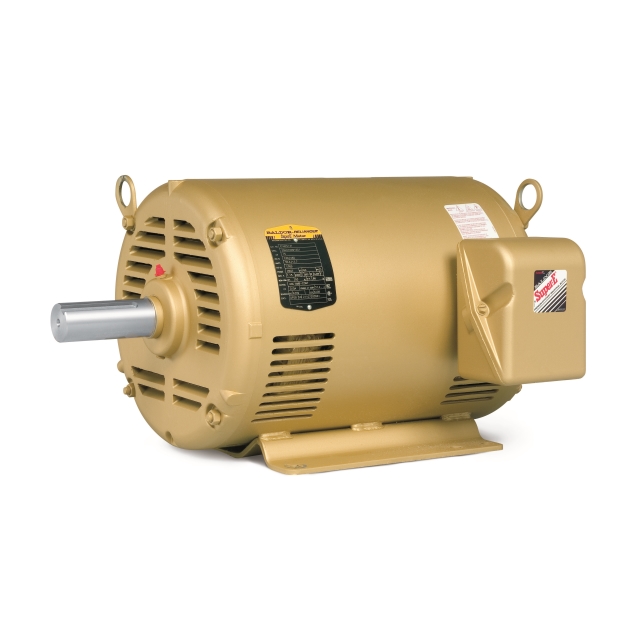

40HP 1800RPM 230/460V 324T OPSB MOTOR
40HP 1800RPM 230/460V 324T OPSB MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 40 HP, 230/460 VAC 60 Hz 3-Phase, 98/49 A, 1770 RPM, F Insulation, Steel 324T Frame, Foot Mount, F2 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Dynamically Balanced Rotor to Increase Bearing Life
- Cast Iron or Heavy Gauge Steel Design
- RoHS Compliant
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 1 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 3 Amp at 230 Volt AC, 1.5 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1760 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 85.5 Percent
- NEMA Frame Size: 143T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV RoHS Compliant; Overall Length 11.12 Inch; Shaft Diameter 0.875 Inch; Motor Type 3520M; Base Indicator Rigid; Mounting Arrangement F2; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 71; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size324T
- HP40
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1770
- RPM Range1701-1800
- Shaft Diameter2 1/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps49.0
- Length27.19 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF2
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight396 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
