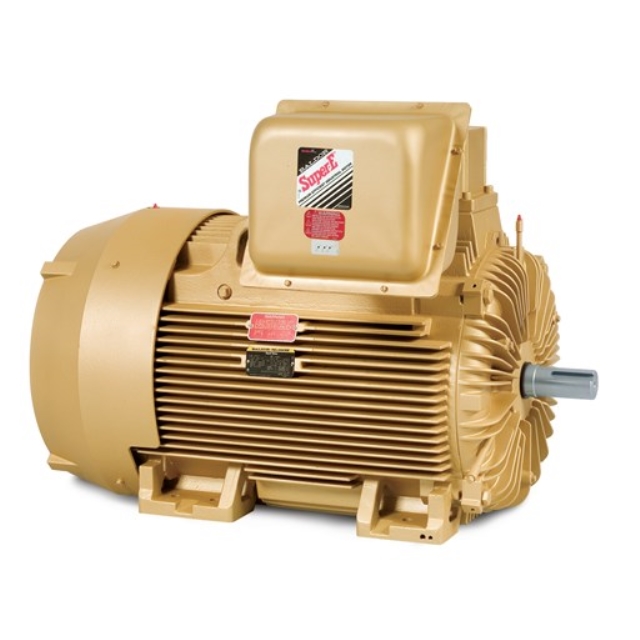

150HP 460V 445TS FRAME MOTOR
150HP 460V 445TS FRAME MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 150 HP, 460 VAC 60 Hz 3-Phase, 169 A, 1785 RPM, F Insulation, Iron 445TS Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Specifications
- Enclosure Type: XPFC
- Power Rating: 25 HP at 50 Hertz, 30 HP at 60 Hertz
- Voltage Rating: 190/230/380/460 Volt AC 3-Phase
- Frequency Rating: 50/60 Hertz
- Motor FLA: 74 Amp at 190 Volt AC, 72 Amp at 230 Volt AC, 37 Amp at 380 Volt AC, 36 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1470/1770 RPM
- Reversible: Yes
- Service Factor: 1
- Efficiency: 93.6 Percent
- NEMA Frame Size: 286T
- Insulation Class: F
- Frame Material: Iron
- Application: General Purpose
- Approval: UL, CSA Overall Length 28.61 Inch; Shaft Diameter 1.875 Inch; Motor Type X1056M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 83; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTEFC
- Frame Size445TS
- HP150
- Line Voltage (60Hz)480V
- Number of Speeds1
- RotationReversible
- RPM1800
- Shaft Diameter2.375
- TypeCondenser Fan Motor
- Ambient40 °C
- CSA ListingTrue
- Frequency60
- Full Load Amps169
- Motor Phase3
- Mounting MethodHorizontal
- Service Factor1.15
- Shaft Length4.63
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Point3700
- Shipping Weight2071 lb
- Shipping Width0.1 in
- UL ListedFalse
- UL RecognizedFalse
- Voltage460
