Baldor

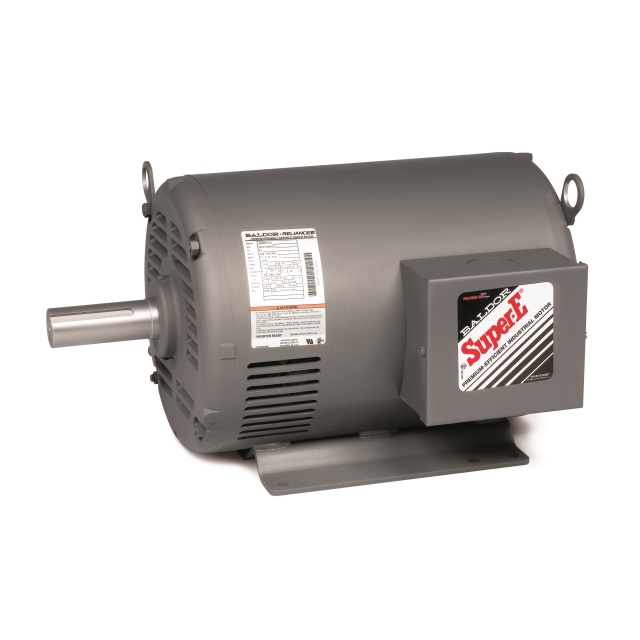

5HP 1800RPM 230/460V 184T ODP MOTOR

SKU:EHFM3218T
Baldor

5HP 1800RPM 230/460V 184T ODP MOTOR

SKU:EHFM3218T

    Description

    ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 5 HP, 230/460 VAC 60 Hz 3-Phase, 13.2/6.6 A, 1750 RPM, F Insulation, Steel 184T Frame, Foot Mount, F2 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, HVAC Motor

    Features & Benefits

    • External Provisions for Bearing Current Mitigation
    • Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2

    Specifications

    • Enclosure Type: OPSB, IP22
    • Power Rating: 20 HP
    • Voltage Rating: 230/460 Volt AC 3-Phase
    • Frequency Rating: 60 Hertz
    • Motor FLA: 48 Amp at 230 Volt AC, 24 Amp at 460 Volt AC
    • Number of Speeds: 1
    • Speed Rating: 1765 RPM
    • Reversible: Yes
    • Service Factor: 1.15
    • Efficiency: 93 Percent
    • NEMA Frame Size: 256T
    • Insulation Class: F
    • Frame Material: Steel
    • Mounting: Foot
    • Application: Fan, Pump, Blower, Air Handling, HVAC System, General Purpose
    • Approval: UL, CSA
    • Overall Length 23.19 Inch; Shaft Diameter 1.625 Inch; Motor Type 3948M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 85; Temperature Rating 40 Deg C

    Specifications

    • BrandBaldor
    • Bearing TypeBall
    • Enclosure TypeOpen Slotted Band (OPSB)
    • Frame Size184T
    • HP5
    • Insulation ClassClass F
    • Line Voltage (60Hz)480V
    • Mounting MethodRigid
    • Number Of Poles4-Pole
    • Number of Speeds1
    • RotationClockwise, Counter Clockwise
    • RPM1750
    • RPM Range1701-1800
    • Shaft Diameter1 1/8
    • TypeCondenser Fan Motor
    • Voltage230/460V
    • Ambient40 °C
    • CSA ListedTrue
    • CSA ListingTrue
    • Frequency60Hz
    • Full Load Amps6.6
    • Length16.50 in
    • Motor Phase3
    • Motor RPM1800
    • Mounting MethodF2
    • Service Factor1.15
    • Shaft Length2.75
    • Shipping Height0.1 in
    • Shipping Length0.1 in
    • Shipping Weight82 lb
    • Shipping Width0.1 in
    • UL ListedTrue
    • UL ListedTrue
    • UL RecognizedTrue
    • UL RecognizedTrue
    • Voltage230/460
