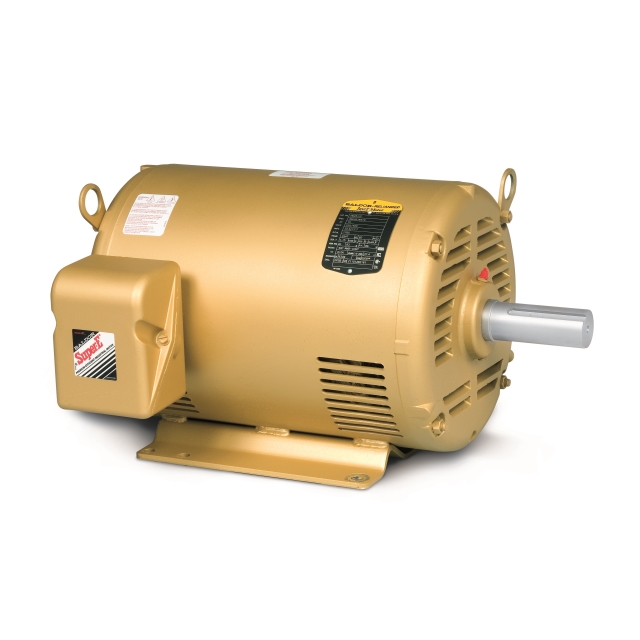

5HP 3600RPM 230/460V 182T OPSB MOTOR
5HP 3600RPM 230/460V 182T OPSB MOTOR
Description
ABB Motors and Mechanical Inc. (Baldor-Reliance) 5 HP, 230/460 VAC 60 Hz 3-Phase, 11.8/5.9 A, 3465 RPM, F Insulation, Steel 182T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, OPSB, General Purpose AC Motor
Features & Benefits
- Class H Insulation for Increased Protection on Inverter Use
- Internal Grounding Ring for Bearing Current Mitigation on DE Retainer Ring
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
Specifications
- Enclosure Type: OPSB, IP22
- Power Rating: 5 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 13.2 Amp at 230 Volt AC, 6.6 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1750 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 89.5 Percent
- NEMA Frame Size: 184T
- Insulation Class: H
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Unit Handling, HVAC System, General Purpose
- Approval: UL, CSA, EEV Overall Length 16.5 Inch; Shaft Diameter 1.125 Inch; Motor Type 3640M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 80; Temperature Rating 40 Deg C; Includes Internal AEGIS Bearing Protection Ring
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOPSB
- Frame Size182T
- HP5
- Line Voltage (60Hz)480V
- Number of Speeds1
- RotationCCW/CW
- RPM3450
- Shaft Diameter1 1/8
- TypeCondenser Fan Motor
- Ambient40 °C
- CSA ListingTrue
- Frequency60
- Full Load Amps6/12
- Height8.44 in
- Length13.62 in
- Motor Phase3
- Mounting MethodF1
- Service Factor1.15
- Shaft Length2.75
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight61 lb
- Shipping Width0.1 in
- TypeGeneral Purpose
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage230/460
- Width11.78 in
