75HP 1800RPM 230/460V 213T TEFC MOTOR
75HP 1800RPM 230/460V 213T TEFC MOTOR
Description

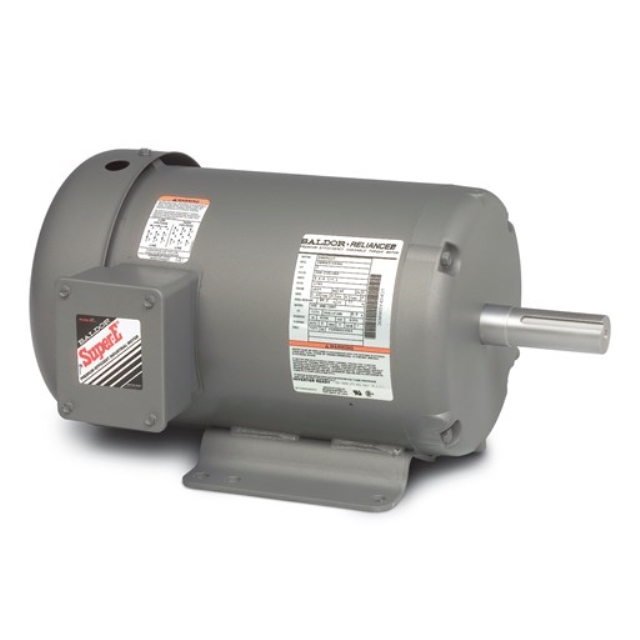

ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 7.5 HP, 230/460 VAC 60 Hz 3-Phase, 19/9.5 A, 1770 RPM, F Insulation, Steel 213T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, HVAC Motor
Features & Benefits
- Filtration First for More Effective Use of Surface Area of Desiccant
- High Moisture and Acid Removal Capacity
- Approved for POE Oils with Copeland™ Compressors
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 1.75 Inch Diameter x 3.92 Inch Length
- Material: Steel (Shell), Solid Copper (Connection)
- Color/Finish: Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-404A/R-407C/R-410A/R-500/R-502/R-507 Refrigerant System, Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 3 Cubic Inch; Filtration 20 Micron; End Connection 1/4 Inch Male SAE Flare x 1/4 Inch Female SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion/Shock Resistant
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTEFC
- Frame Size213T
- HP7-1/2
- Line Voltage (60Hz)480V
- Number of Speeds1
- RotationCCW/CW
- RPM1800
- Shaft Diameter1 3/8
- TypeCondenser Fan Motor
- Ambient40 °C
- CSA ListingTrue
- Frequency50/60
- Full Load Amps9.5
- Motor Phase1
- Mounting MethodRigid Base
- Service Factor1.15
- Shaft Length3.38
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight128 lb
- Shipping Width0.1 in
- UL ListedFalse
- UL ListedFalse
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage230/460
