75HP 3600RPM 230/460V 213T TEFC MOTOR
75HP 3600RPM 230/460V 213T TEFC MOTOR
Description

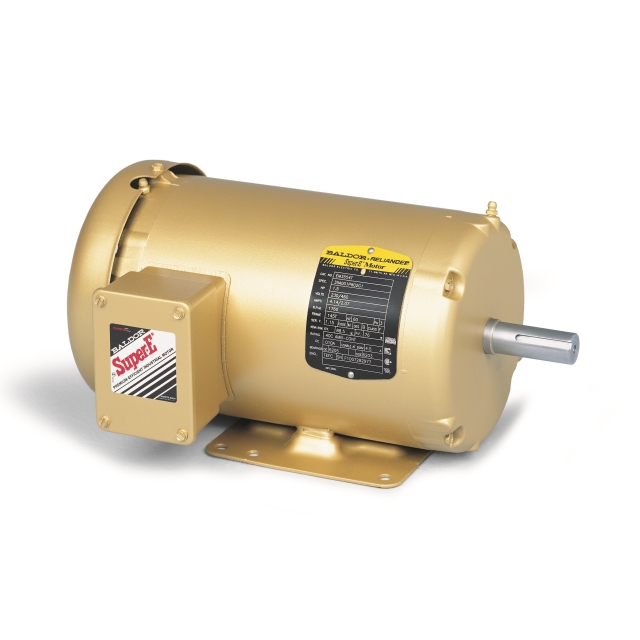

ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 7.5 HP, 230/460 VAC 60 Hz 3-Phase, 18/9 A, 3520 RPM, H Insulation, Steel 213T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, HVAC Shaft Grounding AC Motor
Specifications
- Enclosure Type: TEFC
- Power Rating: 3 HP
- Voltage Rating: 208/230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 19 Amp at 208 Volt AC, 18 Amp at 230 Volt AC, 9 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1755 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 88.5 Percent
- NEMA Frame Size: 182T
- Insulation Class: F
- Application: General Purpose Overall Length 16.79 Inch; Shaft Diameter 1.125 Inch; Motor Type 3630M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 81; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size213T
- HP7-1/2
- Insulation ClassClass H
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3520
- RPM Range3000+
- Shaft Diameter1 3/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps9.0
- Length17.89 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF
- Service Factor1.15
- Shipping Height0 in
- Shipping Length0 in
- Shipping Weight133 lb
- Shipping Width0 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
