1/6HP 208-230V 825/1 CF MOTOR
1/6HP 208-230V 825/1 CF MOTOR
Description

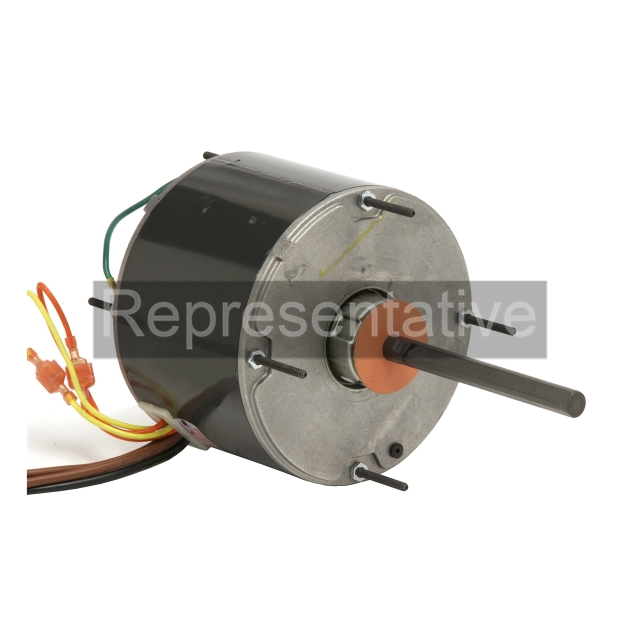

Totaline Condenser Fan Motor, Totally Enclosed, All Position Mounting
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeBall
- Enclosure TypeTEAO
- Frame Size48Y
- HP1/6
- Number of Speeds1
- RotationREV
- RPM825
- Shaft Diameter1/2
- TypePSC Condenser Fan Motor
- Ambient60 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps1
- Height5.604 in
- Length10.6 in
- Motor Phase1
- Mounting MethodBase, Stud, Strap
- Run Capacitor5/370
- Service Factor1
- Shaft Length6 in
- Shipping Height6.5 in
- Shipping Length13.7 in
- Shipping Point37406
- Shipping Weight10.15 lb
- Shipping Width6.7 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage208/230
- Weight11.31 lb
- Width4.1 in
