5HP 3PH 1750RPM 184T TEFC 5HP 3PH 1750RPM 184T MOTOR
5HP 3PH 1750RPM 184T TEFC 5HP 3PH 1750RPM 184T MOTOR
Description

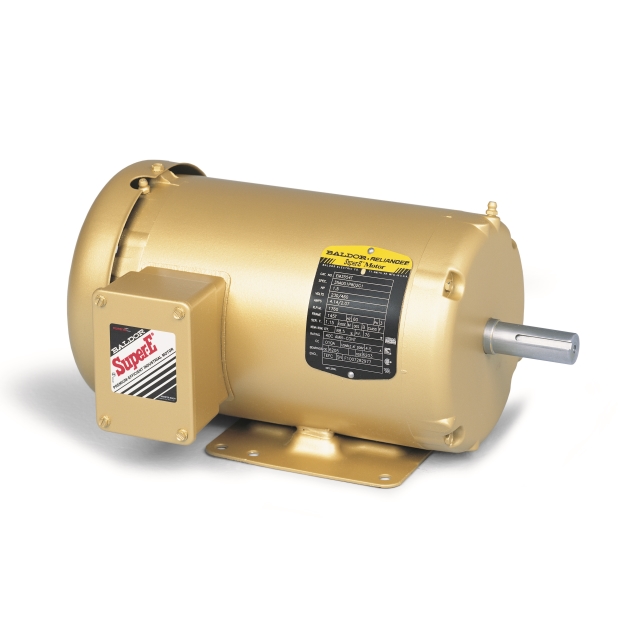

ABB Motors and Mechanical Inc. (Baldor-Reliance) 5 HP, 575 VAC 60 Hz 3-Phase, 3.2/1.6 A, 1750 RPM, F Insulation, Steel 184T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
Specifications
- Enclosure Type: TEFC
- Power Rating: 7.5 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 16.8 Amp at 230 Volt AC, 8.4 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 3450 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 89.5 Percent
- NEMA Frame Size: 184T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA Overall Length 18.05 Inch; Shaft Diameter 1.125 Inch; Motor Type 3646M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 93; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size184T
- HP5
- Insulation ClassClass F
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1750
- RPM Range1701-1800
- Shaft Diameter1 1/8
- TypeCondenser Fan Motor
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps5.3
- Length18.05 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF1
- Service Factor1.15
- Shaft Length2.75
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight89 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage575
