20HP TEFC256T 3600 230460V MOTOR
20HP TEFC256T 3600 230460V MOTOR
Description

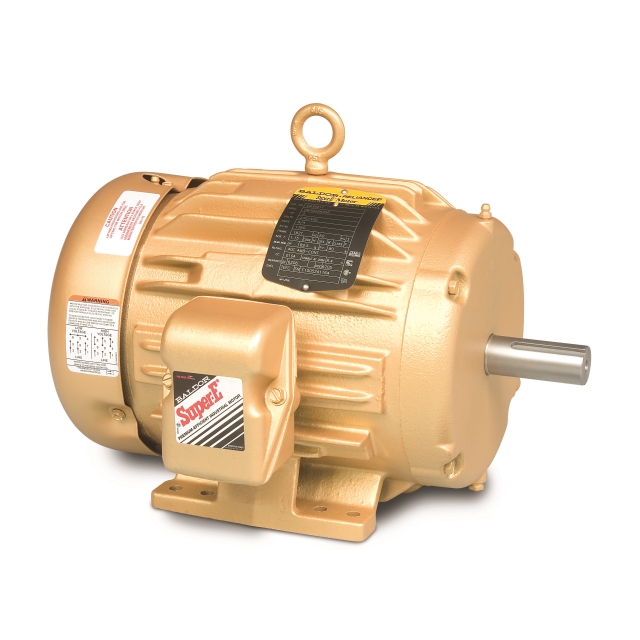

ABB Motors and Mechanical Inc. (Baldor-Reliance) 20 HP, 230/460 VAC 60 Hz 3-Phase, 46/23 A, 3520 RPM, F Insulation, Iron 256T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, General Purpose AC Motor
Features & Benefits
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
- Simple F1 to F2 Conversion on Cast Iron Frames
Specifications
- Enclosure Type: TEFC
- Power Rating: 40 HP
- Voltage Rating: 200 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 111 Amp
- Number of Speeds: 1
- Speed Rating: 1775 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 94.1 Percent
- NEMA Frame Size: 324T
- Insulation Class: F
- Frame Material: Iron
- Mounting: Foot
- Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
- Approval: UL, CSA, EEV Overall Length 30.28 Inch; Shaft Diameter 2.125 Inch; Motor Type 1254M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 82; Temperature Rating 40 Deg C
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
- Frame Size256T
- HP20
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles2-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM3520
- RPM Range3000+
- Shaft Diameter1 5/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps23.0
- Length23.28 in
- Motor Phase3
- Motor RPM3600
- Mounting MethodF1
- Service Factor1.15
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight199 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
