25-30HPTEFC286T1500 190460V MOTOR
25-30HPTEFC286T1500 190460V MOTOR
Description

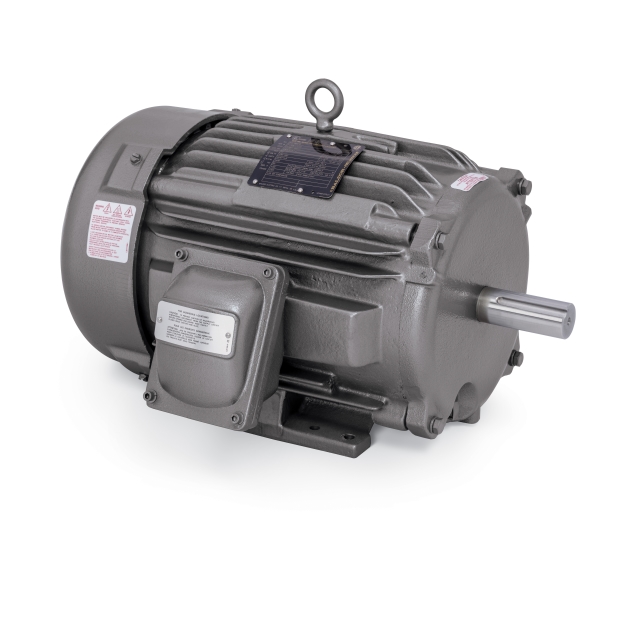

ABB Motors and Mechanical Inc. (Baldor-Reliance) 25/30 HP, 190/230/380/460 VAC 50/60 Hz 3-Phase, 74/72/37/36 A, 1470/1770 RPM, F Insulation, Iron 286T Frame, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, XPFC, General Purpose AC Motor
Features & Benefits
- High efficiency media filter captures particles as small as 0.3 microns
- Applicable to all gas, oil and electric forced air furnaces and to compressor cooling up to 5 tons
- Requires no electrical connections
- Mounts in any position
- Requires no maintenance except periodic media filter replacement
- Quick and easy media filter replacement
- Later upgrade to higher performing media or electronic air cleaner is easy
Specifications
- Filter Type: Media
- Width: 16 Inch
- Height: 25 Inch Airflow Rating 1400 CFM; Static Pressure Drop 0.23 Inch WC at 500 FPM; Finish Rugged Zinc Coated
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeXP
- Frame Size286T
- HP25/30
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1470/1770
- RPM Range1701-1800
- Shaft Diameter1 7/8
- TypePSC Condenser Fan Motor
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps36.0
- Length28.61 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodRigid Base
- Service Factor1
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight689 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Voltage190/230/380/460
