75HP ODP 213T 1800 230460V MOTOR
75HP ODP 213T 1800 230460V MOTOR
Description

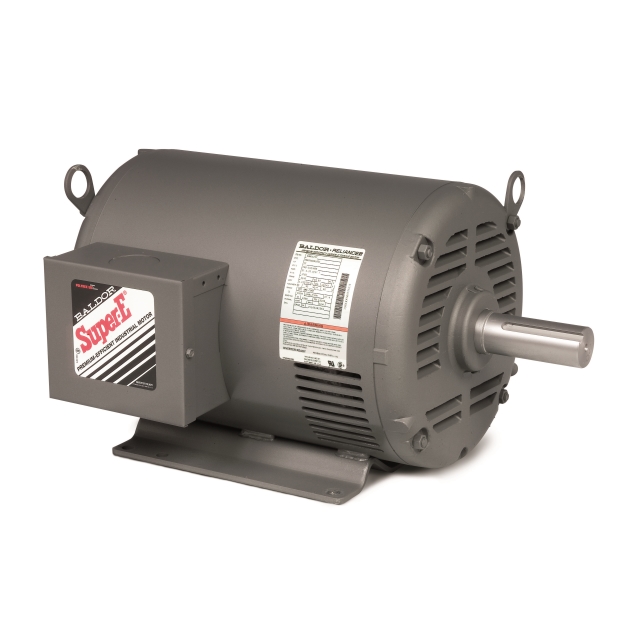

ABB Motors and Mechanical Inc. (Baldor-Reliance) Super-E® 7.5 HP, 230/460 VAC 60 Hz 3-Phase, 19.6/9.8 A, 1770 RPM, F Insulation, Steel 213T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 4-Pole, 1-Speed, OPSB, IP22, HVAC Motor
Features & Benefits
- External Provisions for Bearing Current Mitigation
- Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
Specifications
- Enclosure Type: TEFC
- Power Rating: 3 HP
- Voltage Rating: 230/460 Volt AC 3-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 8.4 Amp at 230 Volt AC, 4.2 Amp at 460 Volt AC
- Number of Speeds: 1
- Speed Rating: 1760 RPM
- Reversible: Yes
- Service Factor: 1.15
- Efficiency: 89.5 Percent
- NEMA Frame Size: 182T
- Insulation Class: F
- Frame Material: Steel
- Mounting: Foot
- Application: Fan, Pump, Blower, Air Handling, HVAC System, General Purpose
- Approval: UL, CSA Overall Length 16.54 Inch; Shaft Diameter 1.125 Inch; Motor Type 3632M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 4; Power Factor 75; Temperature Rating 40 Deg C
Replacement for
Specifications
- BrandBaldor
- Bearing TypeBall
- Enclosure TypeOpen Slotted Band (OPSB)
- Frame Size213T
- HP7-1/2
- Insulation ClassClass F
- Line Voltage (60Hz)480V
- Mounting MethodRigid
- Number Of Poles4-Pole
- Number of Speeds1
- RotationClockwise, Counter Clockwise
- RPM1770
- RPM Range1701-1800
- Shaft Diameter1 3/8
- TypeCondenser Fan Motor
- Voltage230/460V
- Ambient40 °C
- CSA ListedTrue
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps9.7
- Length16.32 in
- Motor Phase3
- Motor RPM1800
- Mounting MethodF
- Service Factor1.15
- Shaft Length3.38
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight115 lb
- Shipping Width0.1 in
- UL ListedTrue
- UL ListedTrue
- UL RecognizedTrue
- UL RecognizedTrue
- Voltage230/460
