Baldor

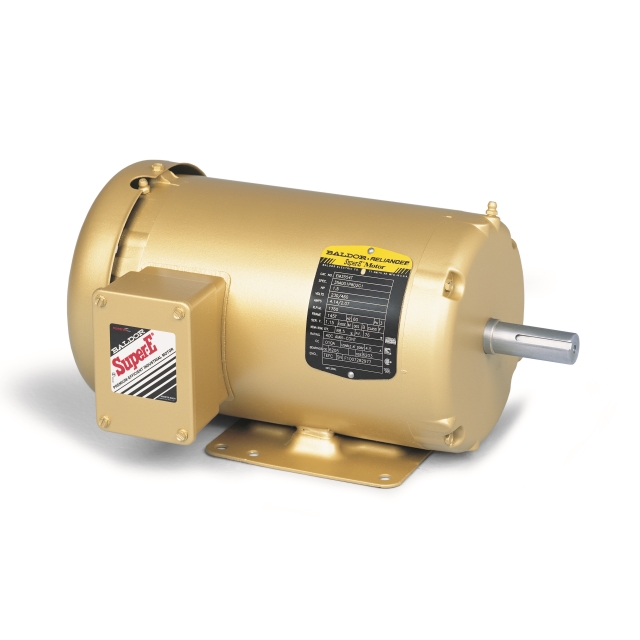

75HP184T3600 208230460TEFC MOTOR

SKU:EM3616T
Baldor

75HP184T3600 208230460TEFC MOTOR

SKU:EM3616T

    Description

    ABB Motors and Mechanical Inc. (Baldor-Reliance) 7.5 HP, 230/460 VAC 60 Hz 3-Phase, 16.8/8.4 A, 3450 RPM, F Insulation, Steel 184T Frame, Foot Mount, F1 Mount Arrangement, Reversible, 2-Pole, 1-Speed, TEFC, General Purpose AC Motor

    Features & Benefits

    • Suitable for Inverter Use per NEMA MG1 Part 31.4.4.2
    • Simple F1 to F2 Conversion on Cast Iron Frames
    • RoHS Compliant

    Specifications

    • Enclosure Type: TEFC
    • Power Rating: 7.5 HP
    • Voltage Rating: 230/460 Volt AC 3-Phase
    • Frequency Rating: 60 Hertz
    • Motor FLA: 19 Amp at 208 Volt AC, 18 Amp at 230 Volt AC, 9 Amp at 460 Volt AC
    • Number of Speeds: 1
    • Speed Rating: 3520 RPM
    • Reversible: Yes
    • Service Factor: 1.15
    • Efficiency: 89.5 Percent
    • NEMA Frame Size: 213T
    • Insulation Class: F
    • Frame Material: Steel
    • Mounting: Foot
    • Application: Fan, Pump, Blower, Conveyor, Compressor, Industrial Machine, General Purpose
    • Approval: UL, CSA
    • RoHS Compliant; Overall Length 17.89 Inch; Shaft Diameter 1.375 Inch; Motor Type 3728M; Base Indicator Rigid; Mounting Arrangement F1; Pulley End Bearing Type Ball; Pulley Shaft Indicator Standard; Starting Method Direct on Line; Number of Poles 2; Power Factor 84; Temperature Rating 40 Deg C

    Specifications

    • BrandBaldor
    • Bearing TypeBall
    • Enclosure TypeTotally Enclosed Fan Cooled (TEFC)
    • Frame Size184T
    • HP7-1/2
    • Insulation ClassClass F
    • Line Voltage (60Hz)480V
    • Mounting MethodRigid
    • Number Of Poles2-Pole
    • Number of Speeds1
    • RotationClockwise, Counter Clockwise
    • RPM3450
    • RPM Range3000+
    • Shaft Diameter1 1/8
    • TypeCondenser Fan Motor
    • Voltage230/460V
    • Ambient40 °C
    • CSA ListedTrue
    • CSA ListingTrue
    • Frequency60Hz
    • Full Load Amps8.4
    • Length18.05 in
    • Motor Phase3
    • Motor RPM3600
    • Mounting MethodF
    • Service Factor1.15
    • Shaft Length2.75
    • Shipping Height0.1 in
    • Shipping Length0.1 in
    • Shipping Weight98 lb
    • Shipping Width0.1 in
    • UL ListedTrue
    • UL ListedTrue
    • UL RecognizedTrue
    • UL RecognizedTrue
    • Voltage230/460
