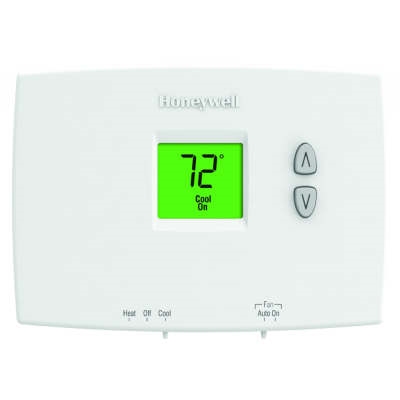

Honeywell Non-Programmable, 1 Heat/1 Cool Thermostat
Honeywell Non-Programmable, 1 Heat/1 Cool Thermostat
Description
Honeywell International Inc. / Resideo Technologies, Inc. PRO® 20 to 30 VAC/750 mV at 50/60 Hz, 0.02 to 1 A Heat/Cool, 40 to 90 Deg F Heat/50 to 99 Deg F Cool Setting, Premier White, Horizontal Mount, Digital Non-Programmable, 1-Stage Heat/Cool, Manual Changeover, Thermostat
Features & Benefits
- Easy to Read Backlight Display - Easy to Read in Various Lighting Conditions
- Precise Comfort Control (+/- 1 Deg F) - Maintains Consistent Comfort to the Highest Level of Accuracy
- Basic Operation - Easy to Use Slide Switches Allow You to Select the Heat or Cool Mode and Operate the fan
Specifications
- Type: Digital Non-Programmable, 1-Stage Heat/Cool, Manual Changeover
- Color: Premier White
- Voltage Rating: 20 to 30 Volt AC/750 Millivolt 50/60 Hertz
- Current Rating: 0.02 to 1 Amp (Heat/Cool)
- Size: 4-5/8 Inch Width x 1-3/16 Inch Depth x 3-7/16 Inch Height
- Mounting Type Horizontal
- Display Size 1.32 Square Inch
- Terminal Designation R, RC, C, W, Y, G, O, B
- Switch Position Heat-Off-Cool (System), Auto-On (Fan)
- Humidity 5 to 90 Percent Relative (Non-Condensing)
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Specifications
- BrandHoneywell
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Line Voltage (60Hz)24V AC
- Power MethodBattery, Hardwired
- Stages1 Heat/1 Cool
- Support Capacitive TouchFalse
- Amps0
- ApplicationConventional Systems And Heat Pumps With No Auxiliary Heat
- BacklitTrue
- ColorWhite
- DisplayLCD
- Height3.4375 in
- LanguageEnglish, French, Spanish
- Length4.625 in
- Number of HVAC Zones1
- Parts ApplicationStd heat/Cool
- Shipping Height2.1 in
- Shipping Length3.7 in
- Shipping Weight0.0313 lb
- Shipping Width6 in
- Temperature Range40 To 90 (Heat), 50 To 99 (Cool)
- UL ListedFalse
- UL RecognizedFalse
- Voltage20/30
- Weight0.54 lb
- Width1.1875 in
